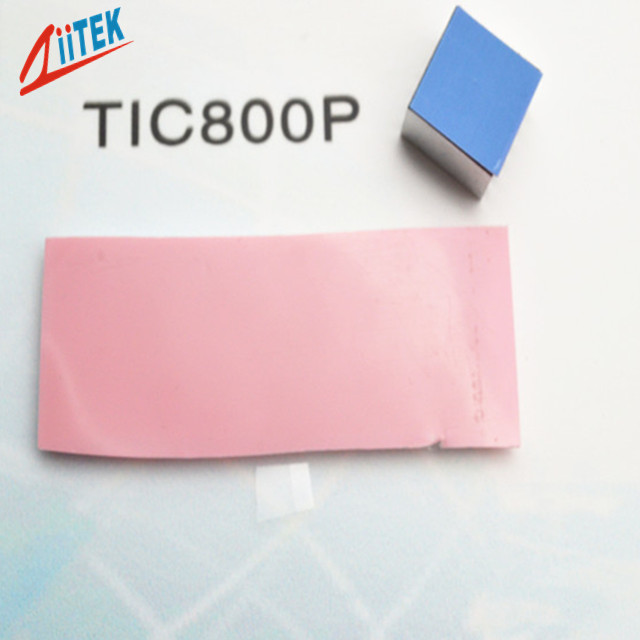

5.0 W/mK Low Thermal Resistance Pink Phase Changing Materials For IGBTs

TIC™808P series is low melting point thermal interface material. At 50℃, TIC™808P series begins to soften and flow, filling the microscopic irregularities of both the thermal solution and the integrated circuit package surface, thereby reducing thermal resistance.TIC™808P series is a flexible solid at room temperature and freestanding without reinforcing components that reduce thermal performance.

TIC™808P Series shows no thermal performance degradation after 1,000 hours@130℃,or after 500 cycles, from -25℃ to 125℃.The material softens and does not fully change state resulting in minimal migration (pump out)at operating temperatures.

Applications Include:

> High Frequency Microprocessors
> Notebook and Desktop PCs
> Computer Serves
> Memory Modules
> Cache Chips
> IGBTs

Features:

For Lowest Thermal Resistance :
> 0.014℃-in² /W thermal resistance
> Naturally tacky at room temperature,
no adhesive required
> No heat sink preheating required

Standard Thicknesses:

0.005"(0.127mm) 0.008"(0.203mm) 0.010"(0.254mm) 0.0012"(0.305mm)
Consult the factory alternate thickness.

Standard Sizes:

10" x 16"(254mm x 406mm) 16" X 400' (406mm X 121.92M)
TIC™800 series are supplied with a white release paper and a bottom liner. TIC800™ series is available in kiss cut an extended pull tab liner or individual die cut shapes.

Peressure Sensitive Adhesive:

Peressure Sensitive Adhesive is not applicable for TIC™800 series products.

Reinforcement:
No reinforcement is necessary.
