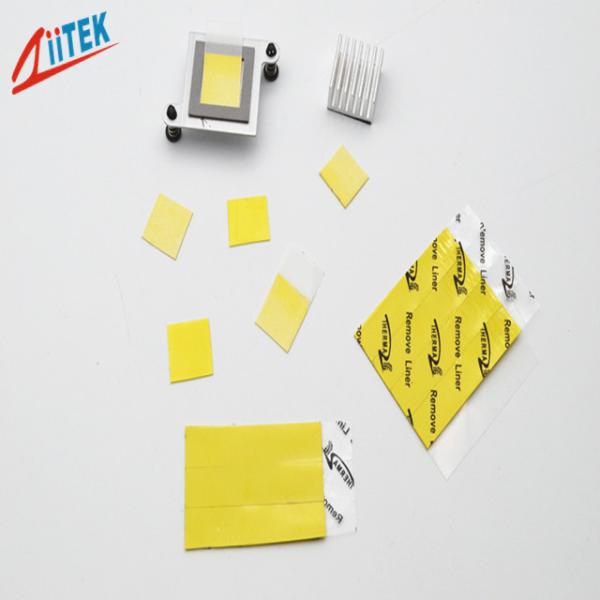

LED Power Supply Thermal Phase Changing Materials Heat sink Thermal Sheet

The TIC™810Y Series is low melting point thermal interface material. At 50℃, The TIC™810Y Series begins to soften and flow, filling the microscopic irregularities of both the thermal solution and the integrated circuit package surface, thereby reducing thermal resistance.The TIC™810Y Series is a flexible solid at room temperature and freestanding without reinforcing components that reduce thermal performance.

The TIC™810Y Series shows no thermal performance degradation after 1,000 hours@130℃,or after 500 cycles, from -25℃ to 125℃.The material softens and does not fully change state resulting in minimal migration (pump out)at operating temperatures.

Features
>0.024℃-in² /W thermal resistance
>Naturally tacky at room temperature, no adhesive required
>No heat sink preheating required

Applications

Standard Thicknesses:

0.003"(0.076mm) 0.005"(0.127mm) 0.008"(0.203mm) 0.010"(0.254mm)
Consult the factory alternate thickness.

Standard Sizes:

9" x 18"(228mm x 457mm) 9" x 400'(228mm x 121M)
TIC™800 series are supplied with a white release paper and a bottom liner. TIC™800 series is available in kiss cut an extended pull tab liner or individual die cut shapes.

Peressure Sensitive Adhesive:

Peressure Sensitive Adhesive is not applicable for TIC™800 series products.

Reinforcement:

No reinforcement is necessary.

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

FAQ:

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.

Dongguan Ziitek Electronical Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

Ziitek D-U-N-S® Number: 656191068
