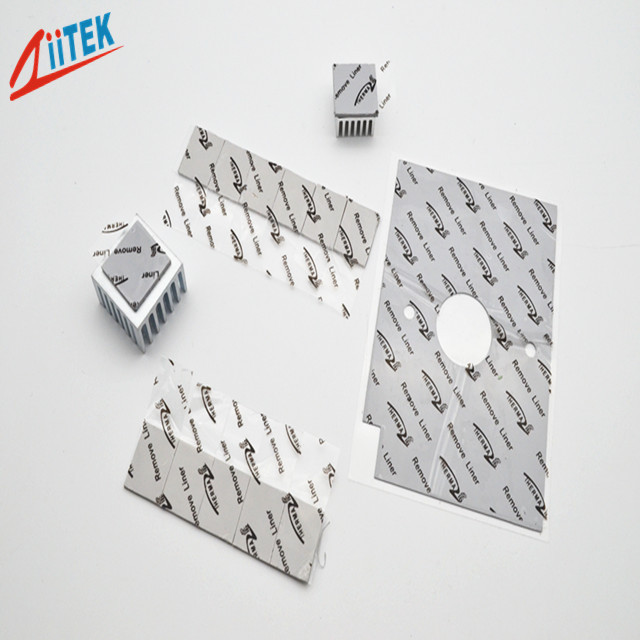

Grey 3.0W/MK Silicone Sheet Thermally Conductive Filler TIF100-30-10E 35 Shore 00

Ask Lasest Price
Brand Name :	ZIITEK
Model Number :	TIF100-30-10E
Certification :	UL and RoHs
Price :	negotiation
Supply Ability :	10000/day
Delivery Time :	3-5work days

Add to Cart

Product Details
Company Profile

Grey 3.0W/MK Silicone Sheet Thermally Conductive Filler TIF100-30-10E 35 Shore 00

Gray 3 W Thermal Gap Filler in Telecommunication hardware

The TIF100-30-10E thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

Features:

> Good thermal conductive:3.0 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

Applications:

> Cooling components to the chassis of frame
> High speed mass storage drives
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

Typical Properties of TIF100-30-10E Series
Color	Gray	Visual	Composite Thickness	hermalImpedance @10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone rubber	***	10mils / 0.254 mm	0.55
			20mils / 0.508 mm	0.82
Specific Gravity	2.82 g/cc	ASTM D297	30mils / 0.762 mm	1.01
			40mils / 1.016 mm	1.11
Heat Capacity	1 l/g-K	ASTM C351	50mils / 1.270 mm	1.27
			60mils / 1.524 mm	1.45
Hardness	35 (Shore 00)	ASTM 2240	70mils / 1.778 mm	1.61
			80mils / 2.032 mm	1.77
Tensile Strength	40 psi	ASTM D412	90mils / 2.286 mm	1.91
			100mils / 2.540 mm	2.05
Continuos Use Temp	-50 to 200℃	***	110mils / 2.794 mm	2.16
			120mils / 3.048 mm	2.29
Dielectric Breakdown Voltage	>1500～>5500 VAC	ASTM D149	130mils / 3.302mm	2.44
			140mils / 3.556 mm	2.56
Dielectric Constant	5.5 MHz	ASTM D150	150mils / 3.810 mm	2.67
			160mils / 4.064 mm	2.77
Volume Resistivity	6.3 X10" Ohm-meter	ASTM D257	170mils / 4.318 mm	2.89
			180mils / 4.572 mm	2.98
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	3.05
			200mils / 5.080 mm	3.14
Thermal conductivity	3.0W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
