High Heat Insulation Materials Thermal Graphite Sheet 2.2 g/cc Hardness

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIRTM606-10
Certification :	RoHs
Delivery Time :	2-3 work days

Add to Cart

Product Details
Company Profile

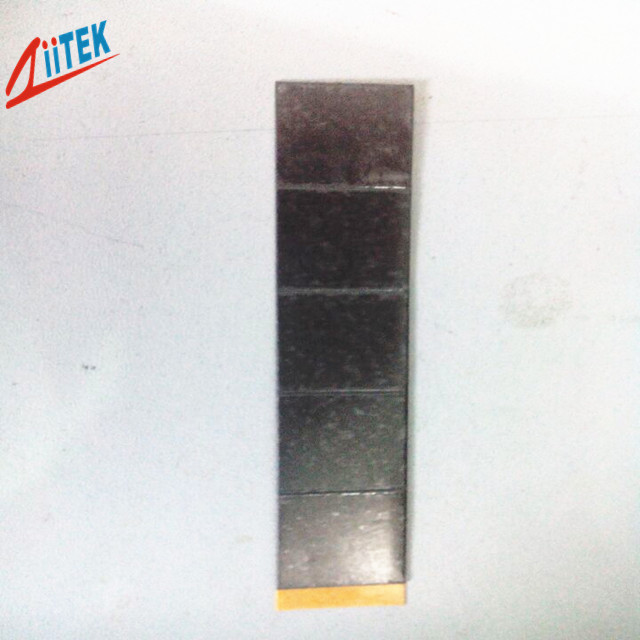

High Heat Insulation Materials Thermal Graphite Sheet 2.2 g/cc Hardness

High Heat Insulation Materials Thermal Graphite Sheet 2.2 g/cc Hardness

The TIR^TM606-10 Series products are high-performance and heat-conductive interface materials with the reasonable prices. They can be used in applications where no requirement for electric insulation is specified. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.

Features

> High thermal conductive of 10 W/mK
> Low thermal resistance

Applications

> Power conversion equipment
> Power supplies
> Large telecommunications switching hardware
> Notebook computers

Typical Properties of TIR™606-10 Series
Product Name	TIR^TM606-10	Test Method
Materials	Natural graphite
Color	Black	Visual
Composite Thickness (in/mm)	0.006"(0.152mm)
Thickness Tolerance	+/- 10%
Density	2.2 g/cc
Hardness	85 Shore A	ASTM D2240
Thermal conductivity (Z Axis Direction)	10.0W/m-K	ASTM D5470
Thermal conductivity (X-Y Axis Direction)	150W/m-K	ASTM D5470
Tensile Strength	715psi (4900kpa)	ASTM D5470
Thermal Impedance ( @100psi)	0.042 in²℃/W	ASTM D5470
Operating Temperature	-200℃ ～300℃

Standard Thicknesses

0.004"(0.102mm) 0.005"(0.127mm) 0.006"(0.152mm)
0.008"(0.203mm) 0.010"(0.254mm) 0.012"(0.304mm)
0.020"(0.508mm)
Consult the factory alternate thickness.

Standard Sizes

18" x 18"(457mm x 457mm) 18" x 300'(457mm x 91.4M)
Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive

Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.

Insulation

Request plastic on one side with "P1" suffix

TIR600 Series Datasheet-(E).pdf
