Black Mobile Phone Graphite Gasket Material With 715psi Tensile Strength

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIR™ 350C-T2 Series
Certification :	RoHs
Delivery Time :	2-3 work days

Add to Cart

Product Details
Company Profile

Black Mobile Phone Graphite Gasket Material With 715psi Tensile Strength

Black Mobile Phone Graphite Gasket Material With 715psi Tensile Strength

TIR™ 350C-T2 Series products are a new material with highly effective heat conductivity and absorption, stabilized device function and reduce the chance of malfunction by spreading the high temperature heat radiated from specific parts or devices.

Feature

Easy to assemble

Ultra-thin type

RoHS Compliant

Thermal Conductivity: 700W/mK

Reduce hot spots and protect sensitive areas

Light weight

Flexible

Ease of manufacturing for high volume production

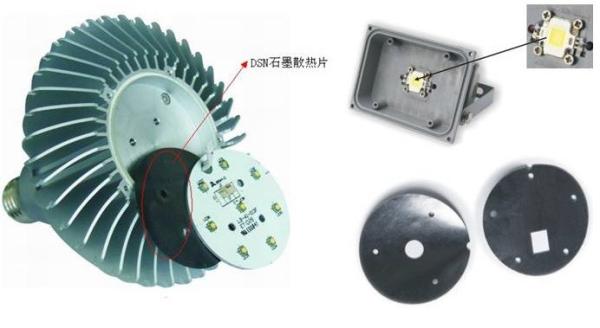

Application

PDP,LCD TV

Laptop,Notebook,Projector

Mobile phone

Automotive electronics

displays, lighting, telecom

Hand‐held devices

Set top box

LED Power Supply

LED Controller

LED Lights

LED Ceilinglamp

Monitoring the Power Box

AD-DC Power Adapters

Rainproof LED Power Supply

Waterproof LED Power Supply

Piranha wroof and common lED module

LED module for Channelletters

SMD LED module

LED Flesible strip, LED bar

Typical Properties of TIR^TM350C series
Product Name	TIR^TM350C-T2	Test Method
Color	Black	Visual
Material	Carbon nano composite copper foil vacuum sputtering	*****
Total Thickness	0.050 mm	ASTM D751
Copper foil thickness	0.030 mm	ASTM D751
Single-sided coating Thickness	0.010 mm	ASTM D751
Thickness Tolerance	+/- 10%	ASTM D751
Density	2.7 g/cc	ASTM D297
Hardness	85 Shore A	ASTM D2240
Operation Temperature	-40℃ ～400℃	*****
Volume Resistivity	5.2X10³ Ohm-meter	ASTM D257
Tensile Strength	30 psi	ASTM D412
Typical Thermal Conductivit (In Z axis)	80 W/m-K	ASTM D5470
Typical Thermal Conductivity (In X-Y axis)	700 W/m-K	ASTM D5470
Thermal Resistance @100psi	0.065 (in²℃/W)	ASTM D5470

Standard Sheets Sizes : 500mm x 50m

TIR™ 300C series Individual die cut shapes can be supplied..

Consult the factory alternate thickness.

TIR300C Series Datasheet-(E).pdf
