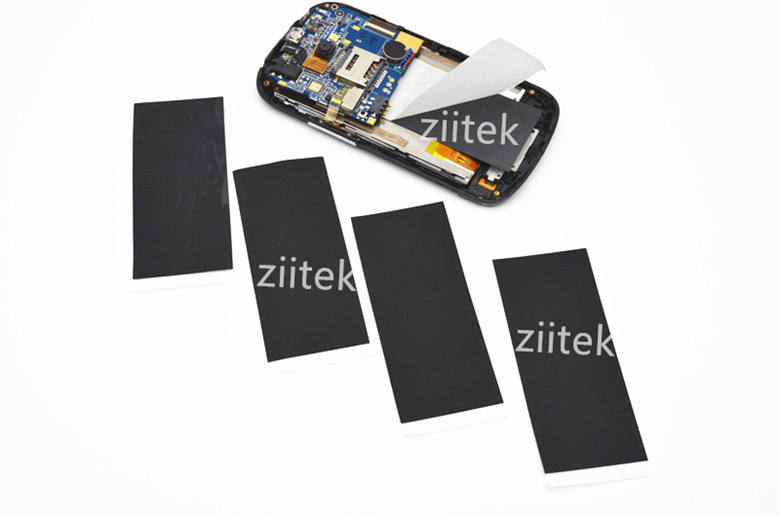

Low Thermal Resistance High Heat Insulation Materials , 6 W / MK Thin Graphite Sheet

Low Thermal Resistance High Heat Insulation Materials , 6W / mK Thin Graphite Sheet

TIR™600 Series products are high-performance and heat-conductive interface materials with the reasonable prices. They can be used in applications where no requirement for electric insulation is specified. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained..

Feature

Naturally tacky at room temperature, no adhesive required

No heat sink preheating required

Low thermal resistance

Ease of use for high volume manufacturing

High thixotropic index

Dry to the touch for pre-apply applications

High thermal reliability, minimal pump out

Re-flow compatible

Cost Effective

Used where electrical isolation is not required

Low volatility – less than 1%

Easy to handle in the manufacturing environment

Flows but doesn’t run like grease

Available in custom die-cut shapes, kiss-cut on rolls

Application

High Frequency Microprocessors

Notebook

Computer Serves

Memory Modules

Cache Chips

IGBTs

COB Led

Desktop PCs

CPU

Microprocessors

Chipsets

Graphic Processing Chips

Custom ASICs

Servers

Memory Modules

Power semiconductors

Power conversion modules

LED Power Supply

LED Controller

LED Lights

LED Ceilinglamp

Typical Properties of TIR^TM600 series
Product Name	TIR^TM605	TIR^TM606	TIR^TM610	TIR^TM620	Test Method
Colour	Black				Visual
Material	Natural Graphite
Thickness	0.005" (0.127mm)	0.006" (0.152mm)	0.010" (0.254mm)	0.020" (0.508mm)	ASTM D751
Thickness Tolerance	+/- 10%	+/- 10%	+/- 5%	+/- 5%	ASTM D751
Density	2.2 g/cc	2.2 g/cc	2.2 g/cc	2.2 g/cc	ASTM D297
Hardness	85 Shore A				ASTM D2240
Operation Temperature	-200℃ ～300℃				*****
Volume Resistivity	3.2X10³ Ohm-meter				ASTM D257
Typical Thermal Conductivit (In Z axis)	6.0W/m-K	6.0W/m-K	6.0W/m-K	6.0W/m-K	ASTM D5470
Typical Thermal Conductivity (In X-Y axis)	240 W/m-K	240 W/m-K	240 W/m-K	240 W/m-K	*****
Thermal Resistance @100psi	0.037 (in²℃/W)	0.042 ( in²℃/W)	0.057 (in²℃/W)	0.098 ( in²℃/W)	ASTM D5470

Standard Sheets Sizes : 500mm x 50m

TIR™ 600 series Individual die cut shapes can be supplied..

Consult the factory alternate thickness.
