Colling Thermal Conductive Pad TIF180-30-01E 2mm Thickness 3W/MK
ROHS And UL

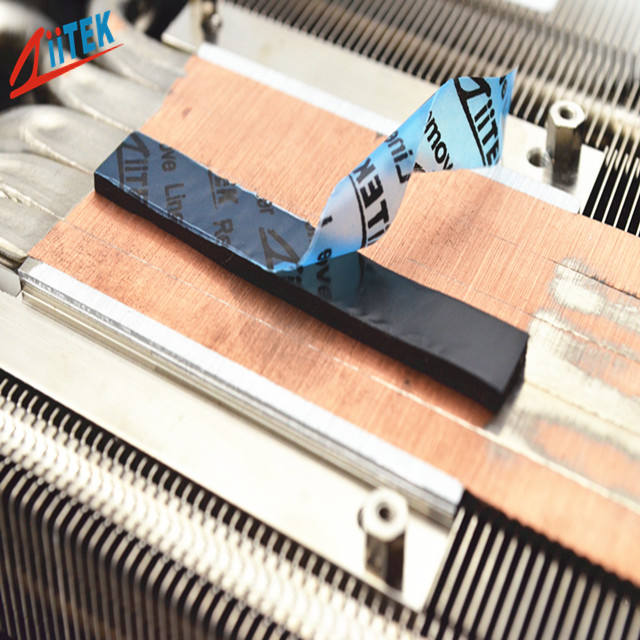

The TIF™180-30-01E is a silicone based, thermally conductive gap pad. Its unreinforced
construction allows additional compliancy. This product has low
hardness is conformable and is electrically isolating. The low
modulus characteristic of the product offers optimal thermal
performance with the ease of handling.
Features:
> Good thermal conductive: 3 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:
> IGBTs
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
Typical Properties of TIF™180-30-01E Series |
Color | black | Visual | Composite Thickness | hermalImpedance
@10psi
(℃-in²/W) |
Construction &
Compostion | Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.57 |
| 20mils / 0.508 mm | 0.71 |
Specific Gravity | 2.50 g/cc | ASTM D297 | 30mils / 0.762 mm | 0.88 |
40mils / 1.016 mm | 0.96 |
Heat Capacity | 1 l/g-K | ASTM C351 | 50mils / 1.270 mm | 1.11 |
60mils / 1.524 mm | 1.26 |
Hardness | 35 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 1.39 |
80mils / 2.032 mm | 1.54 |
Tensile Strength | 48 psi | ASTM D412 | 90mils / 2.286 mm | 1.66 |
100mils / 2.540 mm | 1.78 |
Continuos Use Temp | -50 to 200℃ | *** | 110mils / 2.794 mm | 1.87 |
120mils / 3.048 mm | 1.99 |
| Dielectric Breakdown Voltage | >10000 VAC | ASTM D149 | 130mils / 3.302mm | 2.12 |
140mils / 3.556 mm | 2.22 |
Dielectric Constant | 10.2 MHz | ASTM D150 | 150mils / 3.810 mm | 2.31 |
160mils / 4.064 mm | 2.41 |
| Volume Resistivity | 7.3X10"
Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 2.51 |
180mils / 4.572 mm | 2.58 |
Fire rating | 94 V0 | equivalent UL | 190mils / 4.826 mm | 2.64 |
200mils / 5.080 mm | 2.72 |
Thermal conductivity | 3 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm)
0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm)
0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm)
0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
