TIR300CU Copper Composite Carbon Nano Coating thermal graphite sheet

Ask Lasest Price
Brand Name :	ziitek
Model Number :	TIR300CU
Certification :	RoHs
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

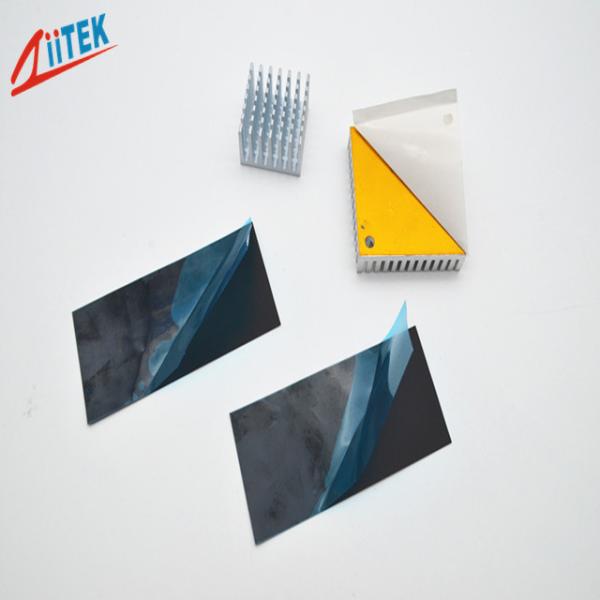

TIR300CU Copper Composite Carbon Nano Coating thermal graphite sheet

TIR300CU Copper Composite Carbon Nano Coating thermal graphite sheet

TIR™300CU Series products are a new material with highly effective heat conductivity and absorption, stabilized device function and reduce the chance of malfunction by spreading the high temperature heat radiated from specific parts or devices.

Feature

Good thermal conductive: 320 W/mK
Easy to assemble

Ultra-thin type
RoHS Compliant

Application

PDP,LCD TV,Set top box
Laptop,Notebook,Projector
Mobile phone,Hand‐held devices
Automotive electronics

Typical Properties of TIR^TM300CU series
Product Name	TIR^TM360CU-T2	TIR^TM380-CU-T2	Test Method
Colour	Black		Visual
Material	Copper Composite Carbon Nano Coating		*****
Total Thickness	0.060 mm	0.080 mm	ASTM D751
Copper foil thickness	0.030 mm	0.050 mm	ASTM D751
Single-sided coating Thickness	0.015 mm	0.015 mm	ASTM D751
Thickness Tolerance	+/- 10%	+/- 10%	ASTM D751
Density	2.7 g/cc	2.7 g/cc	ASTM D297
Hardness	85 Shore A		ASTM D2240
Operation Temperature	-40℃ ～250℃		*****
Volume Resistivity	6.3X10⁹ Ohm-meter		ASTM D257
Tensile Strength	30 psi	40 psi	ASTM D412
Typical Thermal Conductivity (In Z axis)	140 W/m-K	140 W/m-K	ASTM D5470
Typical Thermal Conductivity (In X-Y axis)	320 W/m-K	320 W/m-K	ASTM D5470
Thermal Resistance @100psi	0.075 (in²℃/W)	0.100 (in²℃/W)	ASTM D5470

Standard Sheets Sizes : 500mm x 50m

TIR™ 300CU series Individual die cut shapes can be supplied..

Consult the factory alternate thickness.
