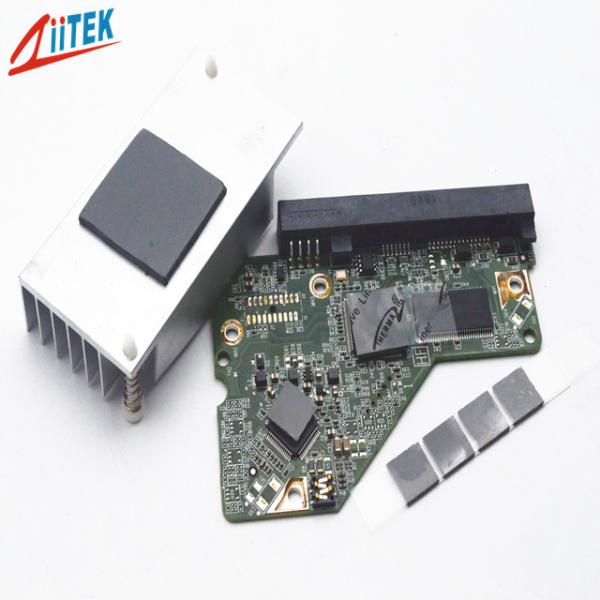

Popular High durability Grey 1mm Thermal Conductive Silicone Pad
TIF™140-11E 2.95 g/cc good performance for LED
The TIF™140-11E is not only designed to take advantage of the gap heat transfer,
to fill gaps, complete the heat transfer between heating and
cooling parts, but also played insulation, damping, sealing and so
on, to meet the equipment miniaturization and ultra-thin design
Requirements, which is a highly technology and use, and the
thickness of the wide range of applications, is also an excellent
thermal conductivity filler material.
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal
interface materials, thermal conductive insulators, thermally
conductive tapes, electrically & thermally conductive Interface
pads and thermal grease,Thermal Conductive plastic,Silicone
Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Features
> Good thermal conductive: 1.5 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications
> Cpu heat sinking
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
Typical Properties of TIF™140-11E Series |
Color | Gray | Visual | Composite Thickness | Thermal Impedance@10psi
(℃-in²/W) |
Construction &
Compostion | Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.16 |
20mils / 0.508 mm | 0.20 |
Specific Gravity | 2.95 g/cc | ASTM D297 | 30mils / 0.762 mm | 0.31 |
40mils / 1.016 mm | 0.36 |
Heat Capacity | 1 l/g-K | ASTM C351 | 50mils / 1.270 mm | 0.42 |
60mils / 1.524 mm | 0.48 |
Hardness | 35 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 0.53 |
80mils / 2.032 mm | 0.63 |
Outgassing(TML) | 0.30% | ASTM E595 | 90mils / 2.286 mm | 0.73 |
100mils / 2.540 mm | 0.81 |
Continuos Use Temp | -50 to 200℃ | *** | 110mils / 2.794 mm | 0.86 |
120mils / 3.048 mm | 0.93 |
Dielectric Breakdown Voltage | >10000 VAC | ASTM D149 | 130mils / 3.302mm | 1.00 |
140mils /3.556 mm | 1.08 |
Dielectric Constant | 4.5 MHz | ASTM D150 | 150mils / 3.810 mm | 1.13 |
160mils / 4.064 mm | 1.20 |
Volume Resistivity | 4.2X1012
Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 1.24 |
180mils / 4.572 mm | 1.32 |
Fire rating | 94 V0 | equivalent
UL | 190mils / 4.826 mm | 1.41 |
200mils / 5.080 mm | 1.52 |
Thermal conductivity | 1.5 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
