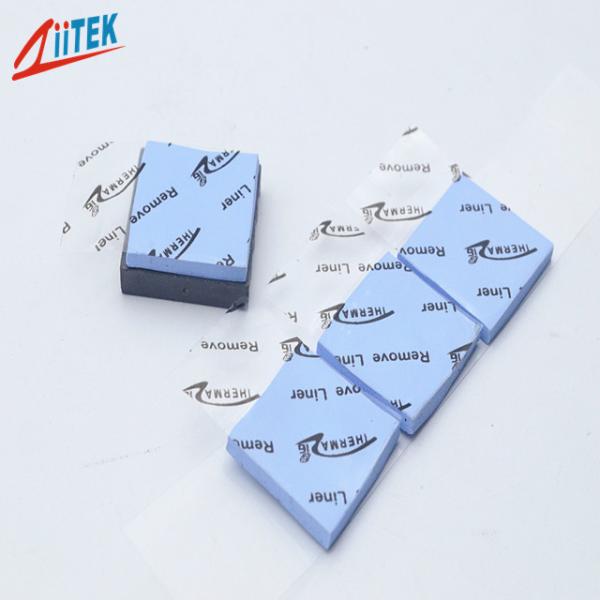

Keeping economy high efficiency soft 27shore00 3W Ceramic filled
silicone thermal conductive pad 2.50 g/cc for laptop
With a wide range, good quality, reasonable prices and stylish
designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks,
DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power
products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED
Server Power products and others. Ziitek provide thermal conductive gap fillers, low melting point
thermal interface materials, thermal conductive insulators,
thermally conductive tapes, electrically & thermally conductive
Interface pads and thermal grease,Thermal Conductive
plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials
products and so on, for various applications.

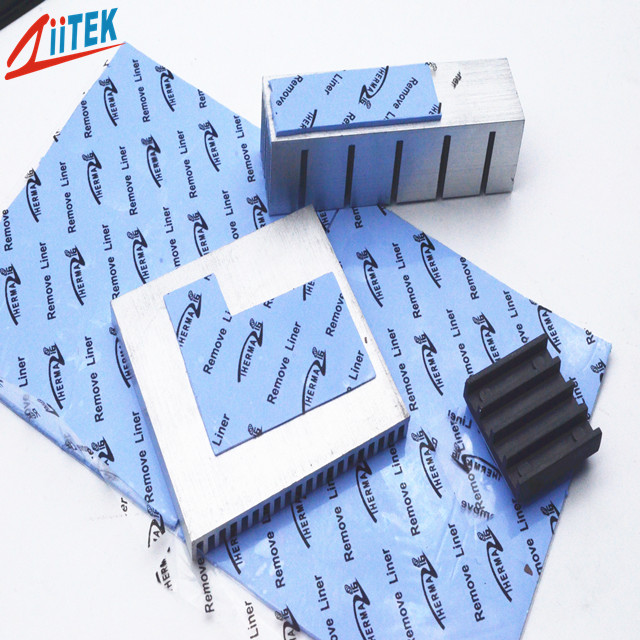

The TIF™100-30-23U is an electrically isolating material, which allows its use in
applications requiring isolation between heat sinks and
high-voltage, bare-leaded devices. Thermally conductive interface
materials are applied to fill the air gaps between the heating
elements and the heat dissipation fins or the metal base. Their
flexibility and elasticity make them suited to the coating of the
very uneven surfaces. Heat can transmit to the metal housing or
dissipation plate from the separate elements or even the entire
PCB, which in effect enhances the efficiency and life-time of the
heat-generating electronic components.
Features:
> Outstanding thermal performance
> Good thermal conductive: 3 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:
> notebook
> IGBTs
> Laptop
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
Typical Properties of TIF™100-30-23U Series |
Color | The light blue | Visual | Composite Thickness | hermalImpedance
@10psi
(℃-in²/W) |
Construction &
Compostion | Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.57 |
| 20mils / 0.508 mm | 0.71 |
Specific Gravity | 2.50 g/cc | ASTM D297 | 30mils / 0.762 mm | 0.88 |
40mils / 1.016 mm | 0.96 |
Heat Capacity | 1 l/g-K | ASTM C351 | 50mils / 1.270 mm | 1.11 |
60mils / 1.524 mm | 1.26 |
Hardness | 27 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 1.39 |
80mils / 2.032 mm | 1.54 |
Tensile Strength | 48 psi | ASTM D412 | 90mils / 2.286 mm | 1.66 |
100mils / 2.540 mm | 1.78 |
Continuos Use Temp | -50 to 200℃ | *** | 110mils / 2.794 mm | 1.87 |
120mils / 3.048 mm | 1.99 |
| Dielectric Breakdown Voltage | >10000 VAC | ASTM D149 | 130mils / 3.302mm | 2.12 |
140mils / 3.556 mm | 2.22 |
Dielectric Constant | 10.2 MHz | ASTM D150 | 150mils / 3.810 mm | 2.31 |
160mils / 4.064 mm | 2.41 |
| Volume Resistivity | 7.3X10"
Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 2.51 |
180mils / 4.572 mm | 2.58 |
Fire rating | 94 V0 | equivalent UL | 190mils / 4.826 mm | 2.64 |
200mils / 5.080 mm | 2.72 |
Thermal conductivity | 3 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm)
0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm)
0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm)
0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.
Quality:
Do it Right the First Time, Total Quality Control.
Effectiveness:
Work Precisely and Thoroughly for Effectiveness.
Service:
Quick Response, On Time Delivery and Excellent Service.
TeamWord:
Teamwork that Integrates Sales, Marketing, Engineering, R&D,
Manufacturing, Logistics, all other Supporting and Services to
Satisfy Customer Needs.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team,
engineering team, R&D team, Manufacturing team, logistics team.
All is for supporting and servicing a satisfy service for
customers.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
