Factory Outlet 2w Thermal Conductive Pad 35 shore00 silicone sheet 2.95 g/cc For Smartphone Heat Dissipation

Ask Lasest Price
Brand Name :	ZIITEK
Model Number :	TIF™100-20-10E
Certification :	UL and RoHs
Price :	negotiation
Supply Ability :	100000pcs/day
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

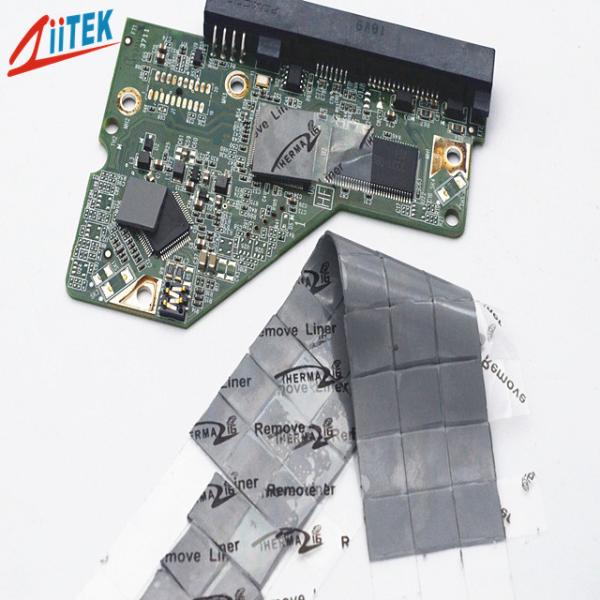

Factory Outlet 2w Thermal Conductive Pad 35 shore00 silicone sheet 2.95 g/cc For Smartphone Heat Dissipation

Factory Outlet 2w Thermal Conductive Pad 35 shore00 silicone sheet 2.95 g/cc For Smartphone Heat Dissipation

The TIF™100-20-10E ) use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

Features

> Good thermal conductive: 2 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

Applications

> Cpu heat sinking
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

Typical Properties of TIF™100-20-10E Series
Color	Gray	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone rubber	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific Gravity	2.95 g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Heat Capacity	1 l/g-K	ASTM C351	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	35 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Outgassing(TML)	0.30%	ASTM E595	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-50 to 200℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>10000 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.5 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	4.2X1012 Ohm-meter	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	2 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470
