Light Green 3.0W/M-K naturally tacky silicone Thermally Gap Filler
for LED floot light
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the
R&D, manufacture and sales of the thermal interface materials
(TIMs). We have rich experiences in this field which can support
you the latest, most effective and one -step thermal management
solutions. We have many advanced production equipments,full test
equipments and fully automatic coating production lines which can
support the production for high performance thermal silicone pad,
thermal graphite sheet/ film, thermal double-sided tape, thermal
insulation pad, thermal ceramic pad, phase change material, thermal
grease etc. UL94 V-0, SGS and ROHS are compliant.

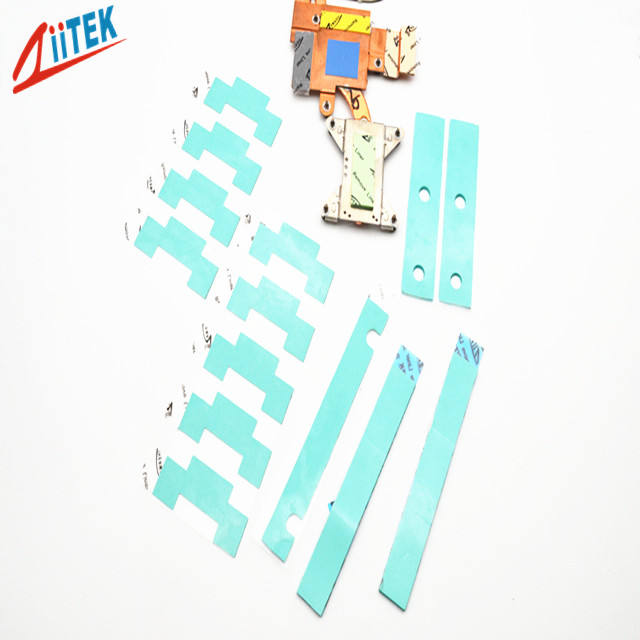

The TIF100 -30-18S thermal silicone pad is a product with both performance and economy. It is a unique
thermal pad with low oil permeability, low thermal resistance, high
softness and high compliance.It can work stably at -40℃~160℃ and
meet the requirement of UL94V0.
Features:
> Good thermal conductive:3 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
Typical Properties of TIF™100 -30-18S Series |
Color | Light green | Visual | Composite Thickness | hermalImpedance
@10psi
(℃-in²/W) |
Construction &
Compostion | Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.21 |
| 20mils / 0.508 mm | 0.27 |
Specific Gravity | 2.80 g /cc | ASTM D297 | 30mils / 0.762 mm | 0.39 |
40mils / 1.016 mm | 0.43 |
Heat Capacity | 1 l /g-K | ASTM C351 | 50mils / 1.270 mm | 0.50 |
60mils / 1.524 mm | 0.58 |
Hardness | 55 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 0.65 |
80mils / 2.032 mm | 0.76 |
Tensile Strength | 55 ps | ASTM D412 | 90mils / 2.286 mm | 0.85 |
100mils / 2.540 mm | 0.94 |
Continuos Use Temp | -50 to 200℃ | *** | 110mils / 2.794 mm | 1.00 |
120mils / 3.048 mm | 1.07 |
Dielectric Breakdown Voltage | >10000 VAC | ASTM D149 | 130mils / 3.302mm | 1.16 |
140mils / 3.556 mm | 1.25 |
Dielectric Constant | 7.5 MHz | ASTM D150 | 150mils / 3.810 mm | 1.31 |
160mils / 4.064 mm | 1.38 |
Volume Resistivity | 8X1012Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 1.43 |
180mils / 4.572 mm | 1.50 |
Fire rating | 94 V0 | equivalent UL | 190mils / 4.826 mm | 1.60 |
200mils / 5.080 mm | 1.72 |
Thermal conductivity | 3 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
