Factory Price Hot Selling Thermal Conductive Silicon Pad Heat Sink Silicone Gap Pad For Motor Heat Disperse

Ask Lasest Price
Brand Name :	ZIITEK
Model Number :	TIF180-15-25E
Certification :	UL and RoHs
Price :	negotiation
Supply Ability :	100000pcs/day
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

Factory Price Hot Selling Thermal Conductive Silicon Pad Heat Sink Silicone Gap Pad For Motor Heat Disperse

Factory Price Hot Selling Thermal Conductive Silicon Pad Heat Sink Silicone Gap Pad For Motor Heat Disperse

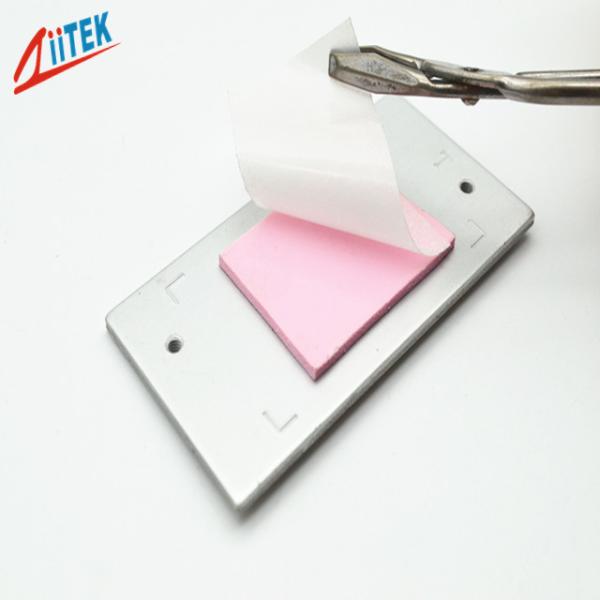

The TIF180-25E Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features:

> Good thermal conductive: 1.5 W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating

Applications

> LED lighting
> Micro heat pipe
> Telecommunication hardware
> Cooling components to chassis frame or other mating components
> Home and small office network equipment
> Handheld portable electronics
> Plasma supply panels
> Semiconductor automated test equipment

Typical Properties of TIF180-15-25E Series
Color	Pink	Visual	Composite Thickness	hermalImpedance @10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone rubber	******	10mils / 0.254 mm	0.48
			20mils / 0.508 mm	0.56
Specific Gravity	2.3g/cc	ASTM D297	30mils / 0.762 mm	0.71
			40mils / 1.016 mm	0.80
Heat Capacity	1 l/g-K	ASTM C351	50mils / 1.270 mm	0.91
			60mils / 1.524 mm	0.94
Hardness	35±5 Shore 00	ASTM 2240	70mils / 1.778 mm	1.05
			80mils / 2.032 mm	1.15
Tensile Strength	40 psi	ASTM D412	90mils / 2.286 mm	1.25
			100mils / 2.540 mm	1.34
Continuos Use Temp	-45 to 200℃	******	110mils / 2.794 mm	1.43
			120mils / 3.048 mm	1.52
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.63
			140mils / 3.556 mm	1.71
Dielectric Constant	4.7 MHz	ASTM D150	150mils / 3.810 mm	1.81
			160mils / 4.064 mm	1.89
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257	170mils / 4.318 mm	1.98
			180mils / 4.572 mm	2.07
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	2.14
			200mils / 5.080 mm	2.22
Thermal conductivity	1.5 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017
