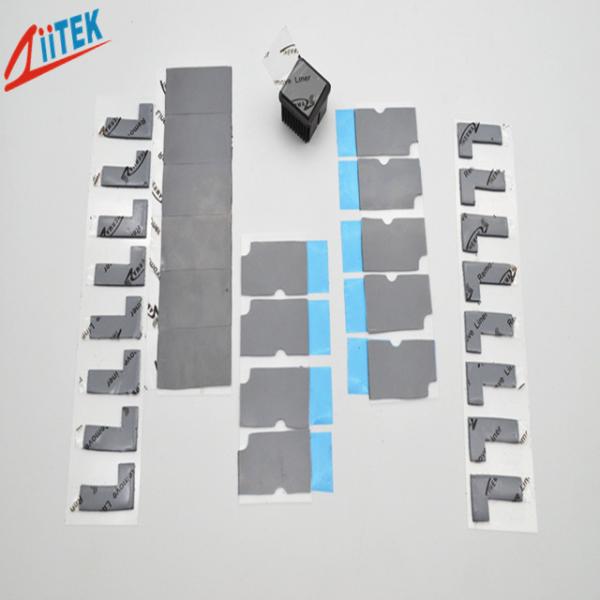

Wholesale Customized 3.0W Thermal Conductive Silicone Free Gap
Filler Pad for Battery Pack Application
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and
manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our
customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make
your design more perfect!
Z-paster180-30-10F is a high performance and compatible non-silicone material of the
thermal conductive interface materials.The role is to fill the air
gaps between the heating elements and the heat dissipation fins or
the metal base.
It applies to the liner based on silicone suitably. The flexibility
and elasticity make it suited to the coating of the very uneven
surfaces.Heat can transmit to the metal housing or dissipation
plate from the separate elements or even the entire PCB, which in
effect enhances the efficiency and life-time of the heat-generating
electronic components.
Z-Paster100-30-10F
Series Datasheet-(E)-REV01.pdf
Features
> Available in varies thicknesses
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
Application
> Cooling components to the chassis of frame
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
| Typical Properties of Z-Paster180-30-10F Series | |
| Color | Gray | Visual | Dielectric Breakdown Voltage (T= 1mm above) | >5000 VAC | ASTM D149 | |
|
| Construction | Silicone-free The metal oxide fills | ********** | Dielectric Constant | 5.5 MHz | ASTM D150 | |
|
| Thermal Conductivity | 3.0 W/mK | ASTM D5470 | Volume Resistivity | 6.0X1013 Ohm-meter | ASTM D257 | |
|
| Hardness | 65 Shore 00 | ASTM 2240 | Continuous Use Temp | – 20 To 125 ℃ | ********** | |
|
| Specific Gravity | 2.88 g/cc | ASTM D297 | Outgassing (TML) | 0.30% | ASTM E595 | |
|
| Thickness | 2mmT | ASTM D374 | Flame Rating | 94 V-0 | equivalent to |
Standard size
0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Options
Proprietary NS1 option available to eliminate tack from one side to
aid in handling.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it
is 7-10 work days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and
message to us.
This message should include any questions you might have about the
products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the
process and send your message to us
4. We will reply you as soon as possible with Email or online.
