Glassfiber Reinforced Thermal Conductivity Pad Thermal Gap Filler
For LED Lights Silicone Elastomer

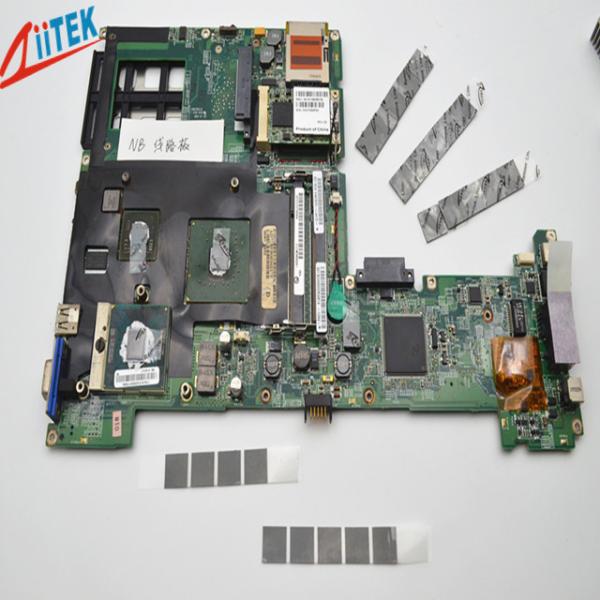

The TIF™340 thermally conductive interface materials are applied to fill the
air gaps between the heating elements and the heat dissipation fins
or the metal base. Their flexibility and elasticity make them
suited to the coating of the very uneven surfaces. Heat can
transmit to the metal housing or dissipation plate from the
separate elements or even the entire PCB, which in effect enhances
the efficiency and life-time of the heat-generating electronic
components.
Features:
> Thickness: 3.0W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
> Easy release construction
> Electrically isolating
> High durability
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> CPU
> display card
> mainboard/mother board
> notebook
> power supply
> Heat pipe thermal solutions
> Memory Modules
| Typical Properties of TIF300 Series |
| Color | Gray | Visual |
| Construction &Compostion | Ceramic filled silicone | ****** |
| Thickness | 0.020"(0.5mm)~0.200"(5.0MM) | ASTM D374 |
| Specific Gravity | 3.05g/cc | ASTM D792 |
| Hardness | 27±5 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -45 to 200℃ | ****** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 4.5 MHz | ASTM D150 |
| Volume Resistivity | ≥1.0X10¹² Ohm-meter | ASTM D257 |
| Fire rating | 94 V0 | UL E331100 |
| Thermal conductivity | 3.0 W/m-K | ASTM D5470 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
Individual die cut shapes and custom thickness can be supplied.
Please contact us of confirming.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
