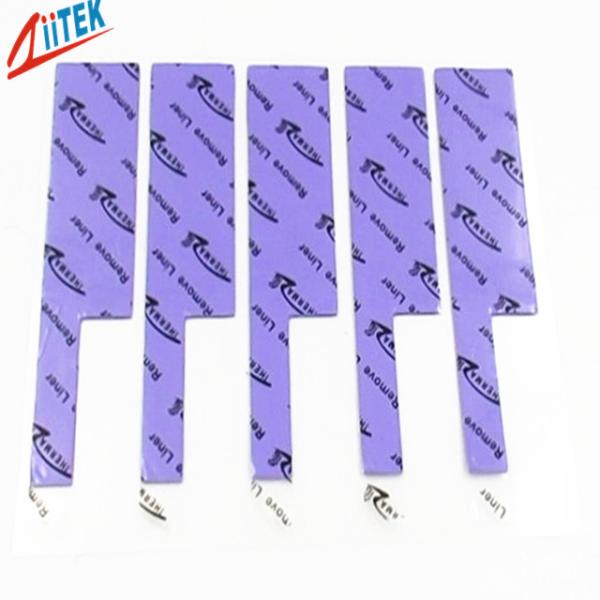

4.7W High Performance Insulation Thermal Conductive Pad For Micro
Heat Pipe
The TIF™680 Series thermally conductive interface materials are applied tofill
the air gaps between the heating elements and the heat dissipation
finsor the metal base.Their flexibility and elasticity make them
suited to coat very uneven surfaces. Heat can transmit to the metal
housing or dissipation plate from the heating elements or even the
entire PCB, which effecitly enhances the efficiency and life-time
of the heat-generating electronic components.
> Good thermal conductivity
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
| Typical Properties of TIF680 Series |
| Color | Blue/ Violet | Visual |
| Construction &Compostion | Ceramic filled silicone elastomer | ****** |
| Thickness | 0.020"(0.5mm)~0.200"(5.0MM) | ASTM D374 |
| Specific Gravity | 2.95g/cc | ASTM D792 |
| Hardness | 45 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -45 to 200℃ | *** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 6.0 MHz | ASTM D150 |
| Volume Resistivity | 5.0X10¹³ Ohm-meter | ASTM D257 |
| Fire rating | 94 V0 | UL E331100 |
| Thermal conductivity | 4.7W/m-K | ASTM D5470 |
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
Company profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting
point thermal interface materials, thermal conductive insulators,
thermally conductive tapes, electrically & thermally conductive
Interface pads and thermal grease,Thermal Conductive
plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials
products, with well-equipped testing equipment and strong technical
force.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
