high thermal conductive gap filler pad 1mmT TIF640GP high conductivity for LED lighting

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

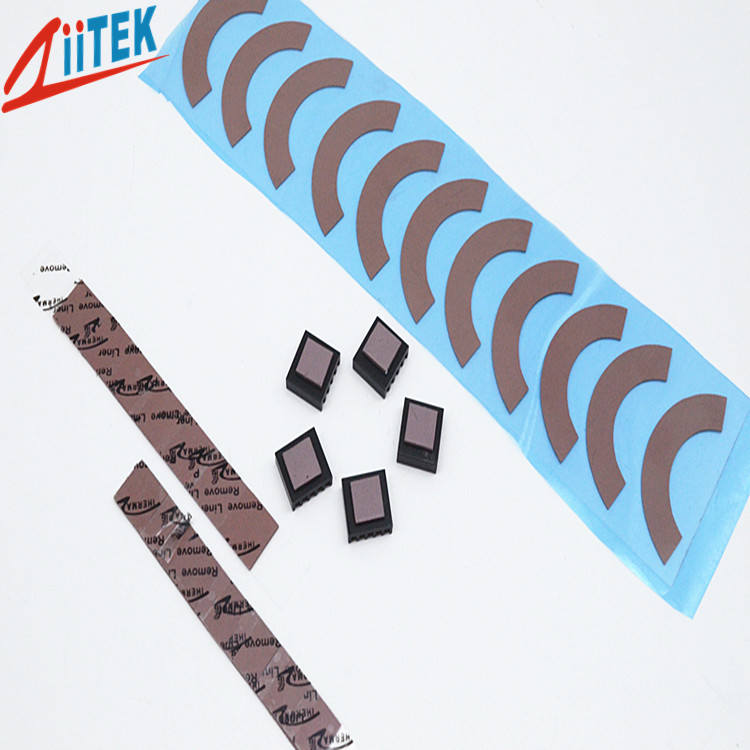

The TIF640GP thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

Features:

> Thickness: 1mmT
> Good thermal conductive:6.0 W/mK

> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

Applications:

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

Typical Properties of TIF™640GP Series
Color	Garnet	Visual	Composite Thickness	hermalImpedance @10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone rubber	***	10mils / 0.254 mm	0.21
			20mils / 0.508 mm	0.27
Specific Gravity	3.18 g /cc	ASTM D297	30mils / 0.762 mm	0.39
			40mils / 1.016 mm	0.43
Heat Capacity	1 l /g-K	ASTM C351	50mils / 1.270 mm	0.50
			60mils / 1.524 mm	0.58
Hardness	45 Shore 00	ASTM 2240	70mils / 1.778 mm	0.65
			80mils / 2.032 mm	0.76
Tensile Strength	55 ps	ASTM D412	90mils / 2.286 mm	0.85
			100mils / 2.540 mm	0.94
Continuos Use Temp	-50 to 200℃	***	110mils / 2.794 mm	1.00
			120mils / 3.048 mm	1.07
Dielectric Breakdown Voltage	>10000 VAC	ASTM D149	130mils / 3.302mm	1.16
			140mils / 3.556 mm	1.25
Dielectric Constant	4.5 MHz	ASTM D150	150mils / 3.810 mm	1.31
			160mils / 4.064 mm	1.38
Volume Resistivity	8X1012Ohm-meter	ASTM D257	170mils / 4.318 mm	1.43
			180mils / 4.572 mm	1.50
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.60
			200mils / 5.080 mm	1.72
Thermal conductivity	6 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

FAQ

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.

Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.

Dongguan Ziitek Electronical Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
