0.5mm T Fiberglass Reinforced Thermal Gap Filler Pad For Heat Sinking Housing

Ask Lasest Price
Brand Name :	ZIITEK
Model Number :	TIF120FG-14S
Certification :	UL and RoHs
Price :	negotiation
Supply Ability :	10000/day
Delivery Time :	3-5work days

Add to Cart

Product Details
Company Profile

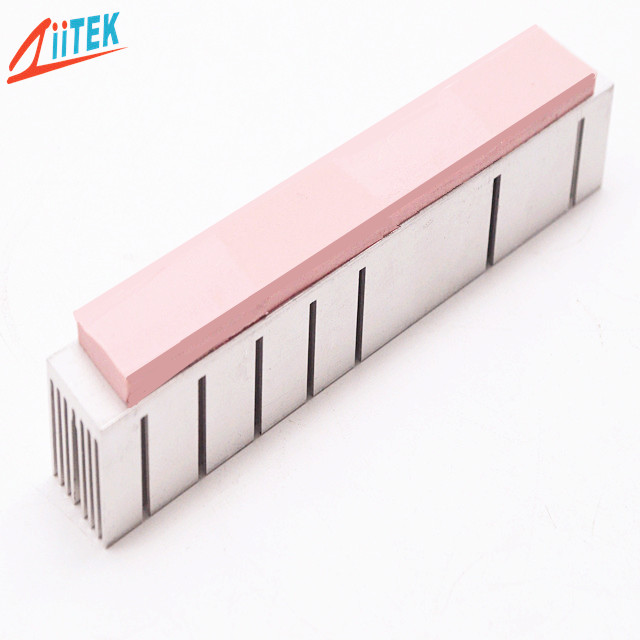

0.5mm T Fiberglass Reinforced Thermal Gap Filler Pad For Heat Sinking Housing

0.5mm T Fiberglass Reinforced Thermal Gap Filler Pad For Heat Sinking Housing

The TIF120FG-14S is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features:

Broad range of hardnesses available 1.5 W/mK

Moldability for complex parts

Outstanding thermal performance

High tack surface reduces contact resistance

RoHS compliant

UL recognized

Applications:

notebook

power supply

Heat pipe thermal solutions

Memory Modules

Mass storage devices

Automotive electronics

Set top boxes

Audio and video components

IT infrastructure

Typical Properties of TIF 120FG-14S
Color	pink	Visual	Composite Thickness	hermalImpedance @10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone rubber	***	10mils / 0.254 mm	0.55
			20mils / 0.508 mm	0.82
Specific Gravity	2.87 g/cc	ASTM D297	30mils / 0.762 mm	1.01
			40mils / 1.016 mm	1.11
Heat Capacity	1 l/g-K	ASTM C351	50mils / 1.270 mm	1.27
			60mils / 1.524 mm	1.45
Hardness	45 (Shore 00)	ASTM 2240	70mils / 1.778 mm	1.61
			80mils / 2.032 mm	1.77
Tensile Strength	40 psi	ASTM D412	90mils / 2.286 mm	1.91
			100mils / 2.540 mm	2.05
Continuos Use Temp	-50 to 200℃	***	110mils / 2.794 mm	2.16
			120mils / 3.048 mm	2.29
Dielectric Breakdown Voltage	>1500～>5500 VAC	ASTM D149	130mils / 3.302mm	2.44
			140mils / 3.556 mm	2.56
Dielectric Constant	5.5 MHz	ASTM D150	150mils / 3.810 mm	2.67
			160mils / 4.064 mm	2.77
Volume Resistivity	4.0X10" Ohm-meter	ASTM D257	170mils / 4.318 mm	2.89
			180mils / 4.572 mm	2.98
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	3.05
			200mils / 5.080 mm	3.14
Thermal conductivity	1.5 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Standard Thicknesses:
0.010" (0.25mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.

Standard Thicknesses:

0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.
