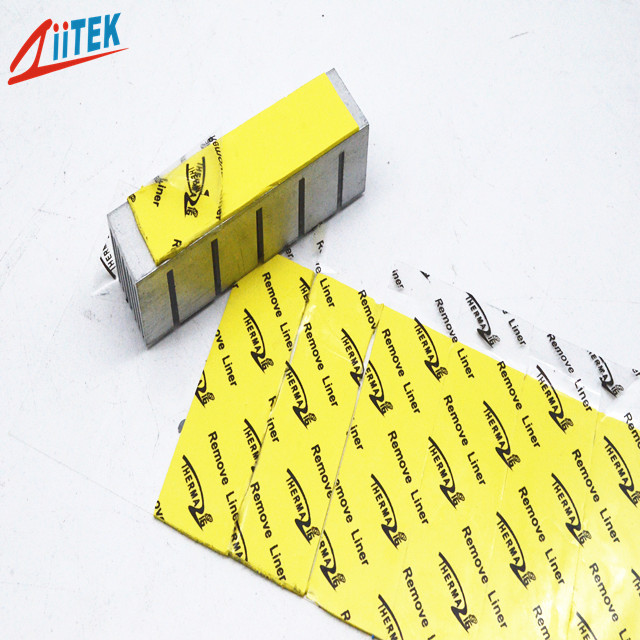

TIF4100 Yellow Thermal Gap Filler Thermal Insulators Materials For Various Electronics

TIF4100 yellow thermal gap filler from Guangdong factory for various electronics

The TIF4100 thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.

Their flexibility and elasticity make them suited to the coating of the very uneven surfaces.

Features:

> 2.5mm thickness

> 200*400mm raw material size

> high quality, low cost

> Good thermal conductive: 2.0 W/mK

> on time delivery

Applications:

> Various electronics

> LED TV and LED-lit lamps

> High speed mass storage drives
> RDRAM memory modules

> LED lighting

> Micro heat pipe thermal solutions

> Automotive engine control units
> Telecommunication hardware

Typical Properties of TIF 4100
Color	yellow	Visual	Composite Thickness	hermalImpedance @10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone rubber	***	10mils / 0.254 mm	0.55
			20mils / 0.508 mm	0.82
Specific Gravity	2.47 g/cc	ASTM D297	30mils / 0.762 mm	1.01
			40mils / 1.016 mm	1.11
Heat Capacity	1 l/g-K	ASTM C351	50mils / 1.270 mm	1.27
			60mils / 1.524 mm	1.45
Hardness	45 (Shore 00)	ASTM 2240	70mils / 1.778 mm	1.61
			80mils / 2.032 mm	1.77
Tensile Strength	40 psi	ASTM D412	90mils / 2.286 mm	1.91
			100mils / 2.540 mm	2.05
Continuos Use Temp	-50 to 200℃	***	110mils / 2.794 mm	2.16
			120mils / 3.048 mm	2.29
Dielectric Breakdown Voltage	>1500～>5500 VAC	ASTM D149	130mils / 3.302mm	2.44
			140mils / 3.556 mm	2.56
Dielectric Constant	10.2 MHz	ASTM D150	150mils / 3.810 mm	2.67
			160mils / 4.064 mm	2.77
Volume Resistivity	7.3X10" Ohm-meter	ASTM D257	170mils / 4.318 mm	2.89
			180mils / 4.572 mm	2.98
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	3.05
			200mils / 5.080 mm	3.14
Thermal conductivity	2 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Standard Thicknesses:
0.100" (2.5 mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge

TIF400 Datasheet-REV02.pdf
