Insulation thermal conductive pad with high thermal conductivity and various thickness

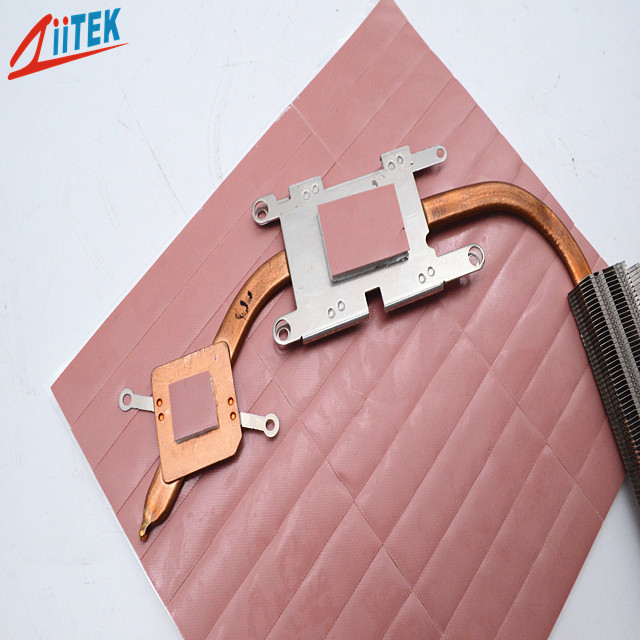

The TIF280-20-18S This product has low hardness is conformable and is electrically isolating. Thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features:

> Have a layer of insulation fabric
> various hardness thermal conductive pad
> Fiberglass reinforced
> Available in varies thickness

Applications:

> Car Batteries
> Cooling components to the chassis of frame
> High speed mass storage drives
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

Standard Thicknesses:
0.080" (2.04mm)

Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.

FACTORY INFORMATION:

Factory Size

5,000-10,000 square meters

Factory Country/Region

Building B8, Industry District Ⅱ, Xicheng, Hengli Township, Dongguan City, Guangdong Province, P.R.China

Annual Output Value

US$1 Million - US$2.5 Million

Dongguan Ziitek Electronical Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

Ziitek D-U-N-S® Number: 656191068
