LED Lamp Heat Resistant Adhesive Thermal Conductive With Ceramic Filled Silicone Elastomer

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIA810FG
Certification :	RoHs
Supply Ability :	1000SQM/Day
Delivery Time :	2-3Work day

Add to Cart

Product Details
Company Profile

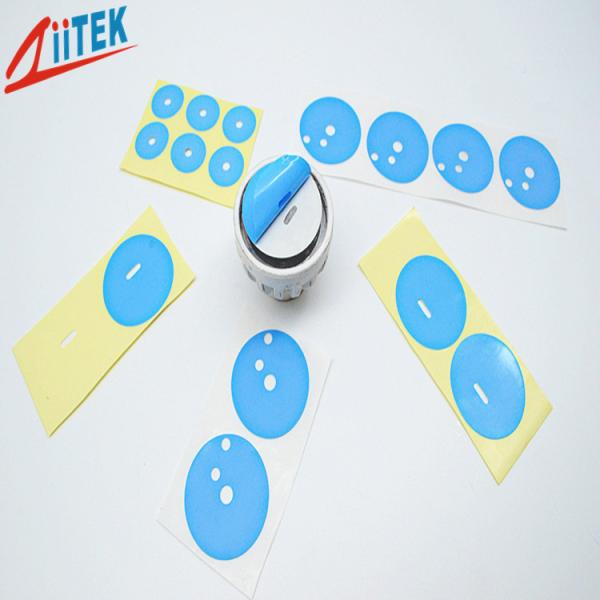

LED Lamp Heat Resistant Adhesive Thermal Conductive With Ceramic Filled Silicone Elastomer

LED Lamp Heat Resistant Adhesive Thermal Conductive with Ceramic Filled Silicone Elastomer

The TIA™810FG Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.

TIA810FG SeriesDatasheet-(E)-REV01.pdf

Features

> Thermal Conductivity: 1.2 W/mK
> High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive

Applications

> Mount heat sink onto BGA graphic processor or drive processor
> Mount heat spreader onto power converter PCB or onto motor control PCB
> High performance, thermally conductive acrylic adhesive
> Can be used instead of heat cure adhesive,screw mounting or clip mounting

Typical Properties of TIA™800FG Series
Product Name	TIA^TM805FG	TIA^TM806FG	TIA^TM808FG	TIA^TM810FG	TIA^TM815FG	TIA^TM820FG	Test Method
Color	White						Visual
Adhesive Type	Acrylic Adhesive						********
Backing Type	Glass fiber						********
Composite Thickness	0.005" 0.127mm	0.006" 0.152mm	0.020" 0.203mm	0.010" 0.254mm	0.015" 0.381mm	0.020" 0.508mm	ASTM D374
Glass fiber Thickness	±0.001" ±0.025mm	±0.001" ±0.025mm	±0.0012" ±0.03mm	±0.0012" ±0.03mm	±0.0015" ±0.038mm	±0.002" ±0.05mm	ASTM D374
Voltage Breakdown	> 2000 Vac	> 2000 Vac	> 2300 Vac	> 3000 Vac	> 3500 Vac	> 3500 Vac	ASTM D149
Peel Adhesion	1200 g/inch2						JIS K02378
Holding Power 25℃/Days	> 120 kg/inch2						JIS K023711
Holding Power 120℃/Hours	> 10 kg/inch2						JIS K023711
Recommend Using Pressure	10 psi						********
Thermal Conductivity	1.2W/mK						********
Thermal Impedance@50psi	0.52℃-in²/W	0.59℃-in²/W	0.83℃-in²/W	0.91℃-in²/W	1.15℃-in²/W	1.43℃-in²/W	ASTM D5470

Standard Thicknesses:

0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm) 0.010"(0.254mm) 0.015"(0.381mm) 0.020"(0.508mm)
Consult the factory alternate thickness.

Standard Sizes:

10" x 18"(254mm x 457mm) 10" x 400'(254mm x 121.9M)
Individual die cut shapes can be supplied.

Reinforcement:

TIA™800 Series sheets are fiberglass reinforced.
