Black 5.0W / mk TCP100-50-01A Nylon Heat Sinking 150℃ Thermal Conductive Engineer Plastic 2.5～3.5kJ/m2 for LED lights

Black 5.0W / mk TCP100-50-01A Nylon Heat Sinking 150℃ Thermal Conductive Engineer Plastic 2.5～3.5kJ/m2 for LED light

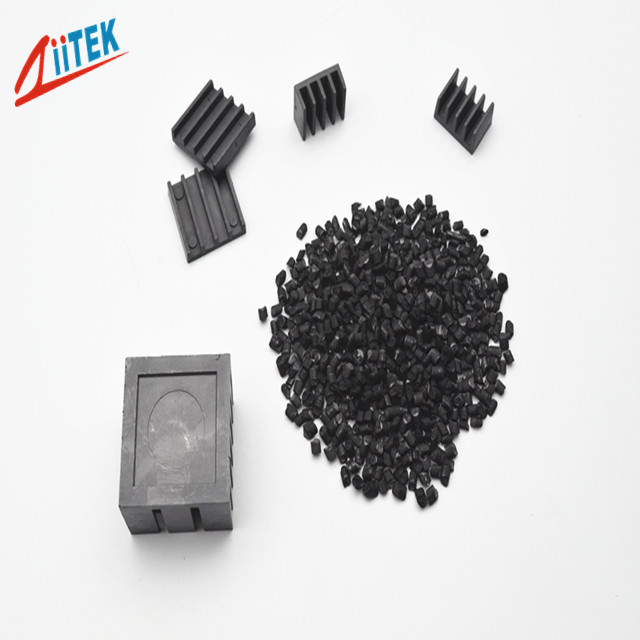

TCP™100-50-01A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.

TCP100-50-01A Thermally Conductive plastic.pdf

Application

TCP™100-50-01A can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink.

To potting LED Lighting heat spreader and power- driver.

Ferrite cements

Relay sealant

Power transformers and coils

tip type LED

PCB and plastics

small electrical devices

IGBTs

Transformer

LED Power Supply

LED Controller

LED Lights

LED Ceilinglamp

Monitoring the Power Box

AD-DC Power Adapters

Rainproof LED Power Supply

Waterproof LED Power Supply

Piranha wroof and common lED module

LED module for Channelletters

SMD LED module

LED PanelLight

LED floot light

Features

> Good thermal conductivity: 5.0W/mK
> Excellent thermal conductivity compared to normal engineering plastics
> Lighter than normal Aluminum housing 30% in weight
> Excellent mould ability in injection moulding
> Much higher production yield than normal Aluminum Die Casting
> Excellent flexibility in designing final products such as housings.
> UL94 V-0.

Typical Properties of TCP^TM100-50-01A
Items	Test method	Unit	Typical data
Physical Properties
Color	Visual	*****	Black
Melt index	ISO 1133	g/10min	4
Specific Gravity	ISO 1183	g/cm3	1.45
Shrinkage	ISO 294	%	0.1
Mechanical Properties
Tensile Strength	ISO 527	MPa	55
Flexural Strength	ISO 178	MPa	80
Flexural Modulus	ISO 178	MPa	15800
Impact Strength, notched	ISO 180	kJ/m2	2.5～3.5
Electrical Properties

Dielectric Constant, 1MHz	ASTM D150	*****	4.5
Volume Resistivity	ASTM D257	Ohm-meter	10000
Thermal Properties
Heat Deflection Temperature	ASTM D648	℃	150
Thermal Conductivity In Plane	ASTM E1461	W/m-K	15
Thermal Conductivity Throngh Plane	ASTM E1461	W/m-K	5.0
Flame retardancy	Min. thick. 1.0mm	Class	V-0

a. Pre-Drying : 4 hrs. @ 80℃ by Hopper Dryer

b. Recommendable Process Temperature at molding machine

- Nozzie : 280℃

- Front : 270℃

- Middle : 260℃

- Rear : 250℃

c. Cycle time : 30sec
