Gray Heatsink Cooling Heat Resistant Material with High Thermal Conductivity

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIS806
Certification :	RoHs and UL
Supply Ability :	100000PCS/Day
Delivery Time :	2-3Word days

Add to Cart

Product Details
Company Profile

Gray Heatsink Cooling Heat Resistant Material with High Thermal Conductivity

Gray Heatsink Cooling Heat Resistant Material with High Thermal Conductivity

The TIS™800 Series products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

Features

> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications

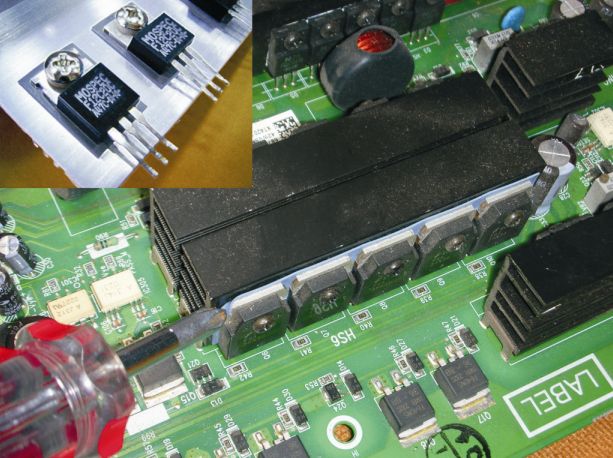

> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface

Typical Properties of TIS™800 Series
Product Name	TIS^TM806	TIS^TM808	TIS^TM810	TIS^TM812	TIS^TM818	Test Method
Color	Gray	Gray	Gray	Gray	Gray	Visual
Construction & Compostion	Ceramic filled silicone rubber					***
Composite Thickness	0.006"/0.152 mm	0.008"/0.203mm	0.010"/0.254mm	0.012"/0.304mm	0.018"/0.457mm	ASTM D751
Specific Gravity	2.2 g/cc					ASTM D297
Heat Capacity	1 l/g-K					ASTM C351
Hardness	50 Shore A					ASTM 2240
Tensile Strength	450 psi	>600 psi	>600 psi	>600 psi	>600 psi	ASTM D412
Continuos Use Temp	(-58 to 356℉) / (-50 to 180℃)					***
Electrical
Dielectric Breakdown Voltage	>1500 VAC	>3500 VAC	>5000 VAC	>5000 VAC	>5000 VAC	ASTM D149
Dielectric Constant	5.5 MHz					ASTM D150
Volume Resistivity	5.0X10" Ohm-meter					ASTM D257
Fire rating	94 V0					equivalent UL
Thermal
Thermal conductivity	1.6 W/m-K					ASTM D5470
Thermal Impedance @50psi	0.21℃-in²/W	0.35℃-in²/W	0.82℃-in²/W	1.23℃-in²/W	1.83℃-in²/W	ASTM D5471

Standard Thicknesses:

0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm) 0.009"(0.228mm)
0.010"(0.254mm) 0.012"(0.304mm) 0.018"(0.457mm)
Consult the factory alternate thickness.

Standard Sizes:

16" x 18"(406mm x 457mm) 16" x 200'(406mm x 60.9M)
Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.
Reinforcement:
TIS™ series sheets are fiberglass reinforced.

TIS800 Series Datasheet-(E)-REV01.pdf
