Ultra High Thermal Conductivity Graphite Sheet Meets EU Environmental Standards

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIR606-16
Certification :	RoHs
Delivery Time :	2-3 work days

Add to Cart

Product Details
Company Profile

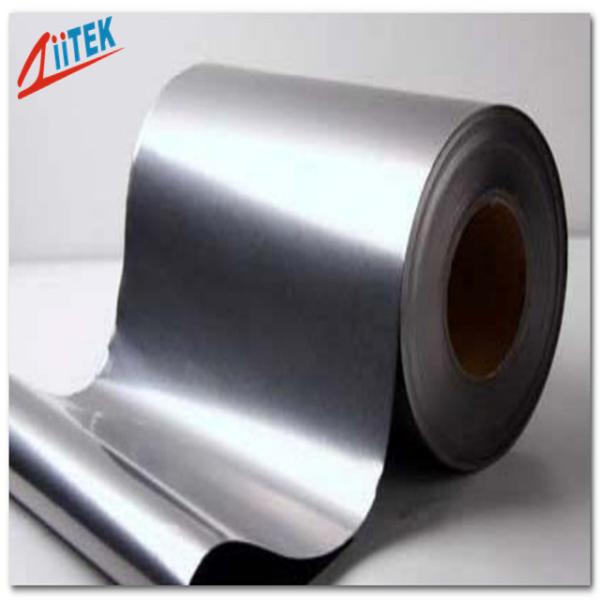

Ultra High Thermal Conductivity Graphite Sheet Meets EU Environmental Standards

Ultra High Thermal Conductivity Graphite Sheet Meets EU Environmental Standards

The TIR™600-16 Series Graphite Sheet delivers up to 240W/m-K thermal conductivity, with ultra-high performance in a lightweight, thin design. It offers twice the thermal diffusion of copper and weighs only one-fifth as much. Cost-effective at one-third the price of synthetic graphite sheets, TIR™600-16 is easy to process, cut into shapes, and mass-produce with double-sided tape and insulating materials. With over 98wt% carbon content, it meets EU environmental standards, making it a reliable and eco-friendly thermal management solution.

TIR-600Series-Natural-graphite-gasket (1).pdf

Features

> Ultra high thermal conductivity
> Easy to assemble
> Low mass decreases space
> EMI reduction

Applications

Electronic components - 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.

Ultra High Thermal Conductivity Graphite Sheet Meets EU Environmental Standards

Typical Properties of TIR™600 series
Product Name	TIR™605	TIR™606	TIR™610	TIR™620	Test Method
Colour	Black
Material	Natural Graphite
Thickness	0.005" (0.127 mm)	0.006" (0.152 mm)	0.010" (0.254 mm)	0.020" (0.508 mm)	ASTM D751
Total Thickness	+/- 10%	+/- 10%	+/- 5%	+/- 5%	ASTM D751
Density	2.2 g/cc	2.2 g/cc	2.2 g/cc	2.2 g/cc	ASTM D297
Hardness	85 Shore A				ASTM D2240
Operation Temperature	-200℃~ 300℃				******
Volume Resistivity	3.2X10³ Ohm-meter				ASTM D257
Typical Thermal Conductivit (In Z axis)	6.0W/m-K	6.0W/m-K	6.0W/m-K	6.0W/m-K	ASTM D5470
Typical Thermal Conductivity (In X-Y axis)	240 W/m-K	240 W/m-K	240 W/m-K	240 W/m-K	******
Thermal Resistance @100psi	0.037 (in²℃/W)	0.042 (in²℃/W)	0.057 (in²℃/W)	0.098 (in²℃/W)	ASTM D5470

Standard Sheet Size:500mm x 50m
TIR™600 Series Individual die cut shapes can be supplied.

Consult the factory alternate thickness.

Ultra High Thermal Conductivity Graphite Sheet Meets EU Environmental Standards

Packaging Details & Lead time

The packaging of Graphite Sheet

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
