black 16W/mK ultra-thin High Thermally Natural graphite carbon Conductive Thermal Graphite Sheet -200℃ ～300℃

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIR610-16
Certification :	RoHs
Delivery Time :	2-3 work days

Add to Cart

Product Details
Company Profile

black 16W/mK ultra-thin High Thermally Natural graphite carbon Conductive Thermal Graphite Sheet -200℃ ～300℃

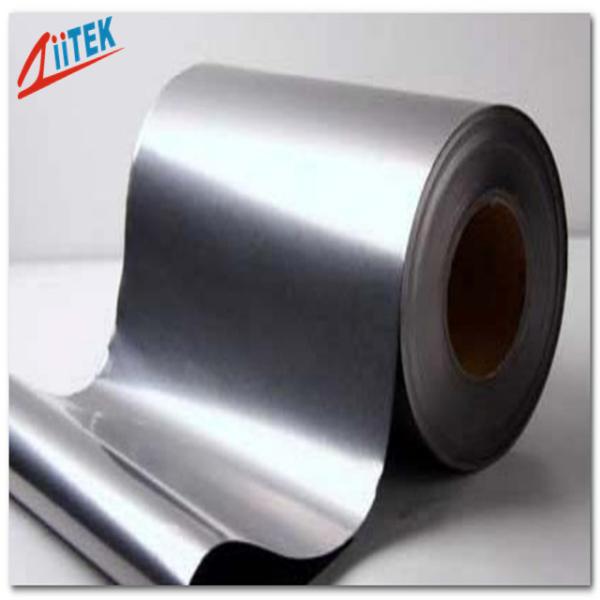

Black 16W/mK ultra-thin High Thermally Natural graphite carbon Conductive Thermal Graphite Sheet -200℃ ～300℃

The TIR™600-16 Series products are high-performance and heat-conductive interface materials with the reasonable prices. They can be used in applications where no requirement for electric insulation is specified. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.

TIR600 Series Datasheet-(E).pdf

Features

Easy to assemble

Ultra-thin type

RoHS Compliant

Thermal Conductivity:16.0 W/mK

Reduce hot spots and protect sensitive areas

Light weight

Flexible

Ease of manufacturing for high volume production

low resistance

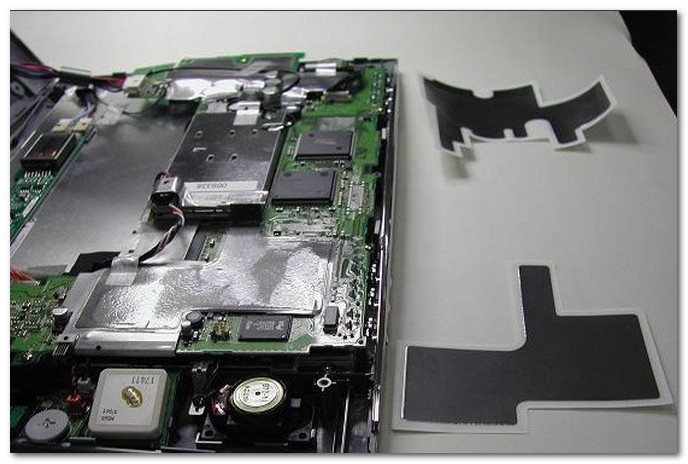

Applications

PDP,LCD TV

Laptop,Notebook,Projector

Mobile phone

Automotive electronics

displays, lighting, telecom

Hand‐held devices

Set top box

LED Power Supply

LED Controller

LED Lights

LED Ceilinglamp

Monitoring the Power Box

AD-DC Power Adapters

Rainproof LED Power Supply

Waterproof LED Power Supply

Piranha wroof and common lED module

LED module for Channelletters

SMD LED module

LED Flesible strip, LED bar

LED PanelLight

LED floot light

Typical Properties of TIR™600-16 Series
Product Name	TIR^TM605-16	TIR^TM610-16	Test Method
Materials	Natural graphite
Color	Black		Visual
Composite Thickness (in/mm)	0.005"(0.127mm)	0.010" (0.254mm)
Thickness Tolerance	+/- 10%	+/- 5%
Density	2.2 g/cc
Hardness	85 Shore A		ASTM D2240
Thermal conductivity (Z Axis Direction)	16.0W/m-K		ASTM D5470
Thermal conductivity (X-Y Axis Direction)	120W/m-K		ASTM D5470
Tensile Strength	215psi (1400kpa)	270psi (1800kpa)	ASTM D5470
Thermal Impedance ( @100psi)	0.029 in²℃/W	0.039 in²℃/W	ASTM D5470
Operating Temperature	-200℃ ～300℃

Standard Thicknesses

0.004"(0.102mm) 0.005"(0.127mm) 0.006"(0.152mm)
0.008"(0.203mm) 0.010"(0.254mm) 0.012"(0.304mm)
0.020"(0.508mm)
Consult the factory alternate thickness.

Standard Sizes

18" x 18"(457mm x 457mm) 18" x 300'(457mm x 91.4M)
Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive

Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.

Insulation

Request plastic on one side with "P1" suffix
