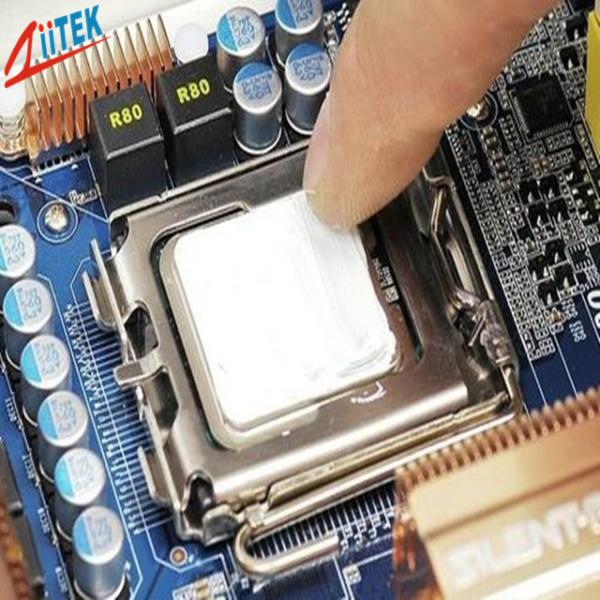

CPU GPU Heat Conductive Silicone Grease with Low Thermal Resistance
The TIG™780-15 products are the high-efficiency heat dissipation ones for the
fillings between the electronic components and the heat dissipation
fins. They serve to moisten the contact surface sufficiently so as
to form an interface of extremely low thermal impedance.
Consequently, the heat dissipation efficiency is far superior to
that offered by others.
TIG780-15-TDS_EN_REV01.3.pdf
Features
> Good thermal conductivity
> Non-toxic and environmentally safe
> Excellent long term stability
> Thoroughly wets out contactsurfaces to create low thermal
resistance
Applications
> Semiconductor cases and heat sinks.
> Power resistors and chassis, thermostats and mating surfaces,
and thermoelectric cooling devices.
> CPU's and GPU's.
> Automatic dispensing and screen-printing.
Typical Properties of TIG™780-10Series
|
| ProductName | TIG™780-10 | Test Method |
| Color | White | Visual |
| Materials | Metal oxide filled silicone oil | Ziitek Test Method |
| Specific Gravity | 2.5g/cm³ | ASTM D297 |
| Thermal Conductivity(W/mK) | 1.5W/mK | ASTM D5470 |
| Bond line Thickness (mm) | 0.014 | ASTM D374 |
| Thermal lmpedance(℃-in²/W )@ 10 psi | 0.085 | ASTM D5470 |
| Thermal lmpedance(℃-in²/W )@ 50 psi | 0.065 | ASTM D5470 |
| Recommended operating temp (°C) | -45℃ to 200℃ | Ziitek Test Method |
| Viscosity(( mPa·s ) | 130,000 | GB/T 10247 |
Package:
Cans of 300ml ~1000ml,; 500g ~ 2kgStorage:
Storage:
Store from 25°C with a maximum humidity of 70%. Do not store in
freezer or refrigerator below 0° C. Safe disposal method does not
require special protection.The storage condition is low temperature and dry, away
from open fire and away from direct sunlight. For detailed method,
please refer to the product material safety data sheet.
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting
point thermal interface materials, thermal conductive insulators,
thermally conductive tapes, electrically & thermally conductive
Interface pads and thermal grease,Thermal Conductive
plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials
products, with well-equipped testing equipment and strong technical
force.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it
is 7-10 work days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
