MR16 Lighting Soft Safe Thermal Conductive Pad High Voltage
Isolation Cooling
Company Profile
With a wide range, good quality, reasonable prices and stylish
designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks,
DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power
products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED
Server Power products and others.
The TIF120FG-15-05S thermally conductive interface materials are applied to fill the
air gaps between the heating elements and the heat dissipation fins
or the metal base. Their flexibility and elasticity make them
suited to the coating of the very uneven surfaces. Heat can
transmit to the metal housing or dissipation plate from the
separate elements or even the entire PCB, which in effect enhances
the efficiency and life-time of the heat-generating electronic
components.
Features:
> Good thermal conductive: 1.5 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
Typical Properties of TIF120FG-15-05S Series |
Color | Blue | Visual | Composite Thickness | hermalImpedance
@10psi
(℃-in²/W) |
Construction &
Compostion | Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.55 |
| 20mils / 0.508 mm | 0.82 |
Specific Gravity | 2.10 g/cc | ASTM D297 | 30mils / 0.762 mm | 1.01 |
40mils / 1.016 mm | 1.11 |
Heat Capacity | 1 l/g-K | ASTM C351 | 50mils / 1.270 mm | 1.27 |
60mils / 1.524 mm | 1.45 |
Hardness | 27/35/45/60
(Shore 00) | ASTM 2240 | 70mils / 1.778 mm | 1.61 |
80mils / 2.032 mm | 1.77 |
| Tensile Strength | 40 psi | ASTM D412 | 90mils / 2.286 mm | 1.91 |
100mils / 2.540 mm | 2.05 |
Continuos Use Temp | -50 to 200℃ | *** | 110mils / 2.794 mm | 2.16 |
120mils / 3.048 mm | 2.29 |
Dielectric Breakdown Voltage | >1500～>5500 VAC | ASTM D149 | 130mils / 3.302mm | 2.44 |
140mils / 3.556 mm | 2.56 |
Dielectric Constant | 5.5 MHz | ASTM D150 | 150mils / 3.810 mm | 2.67 |
160mils / 4.064 mm | 2.77 |
Volume Resistivity | 4.0X10"
Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 2.89 |
180mils / 4.572 mm | 2.98 |
Fire rating | 94 V0 | equivalent UL | 190mils / 4.826 mm | 3.05 |
200mils / 5.080 mm | 3.14 |
Thermal conductivity | 1.5 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm)
0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm)
0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm)
0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)

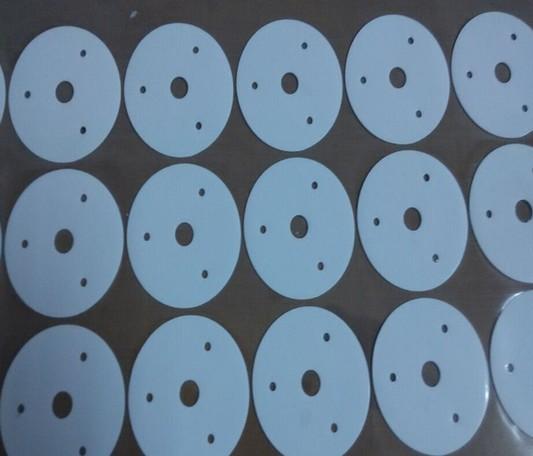

TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
