Non Toxic Eco Silicone Rubber Thermal Gap Filler For High Speed
Mass Storage Drives
Ziitek company is a manufacturer of thermal conductive gap fillers,
low melting point thermal interface materials, thermal conductive
insulators, thermally conductive tapes, electrically & thermally
conductive Interface pads and thermal grease,Thermal Conductive
plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials
products, with well-equipped testing equipment and strong technical
force.

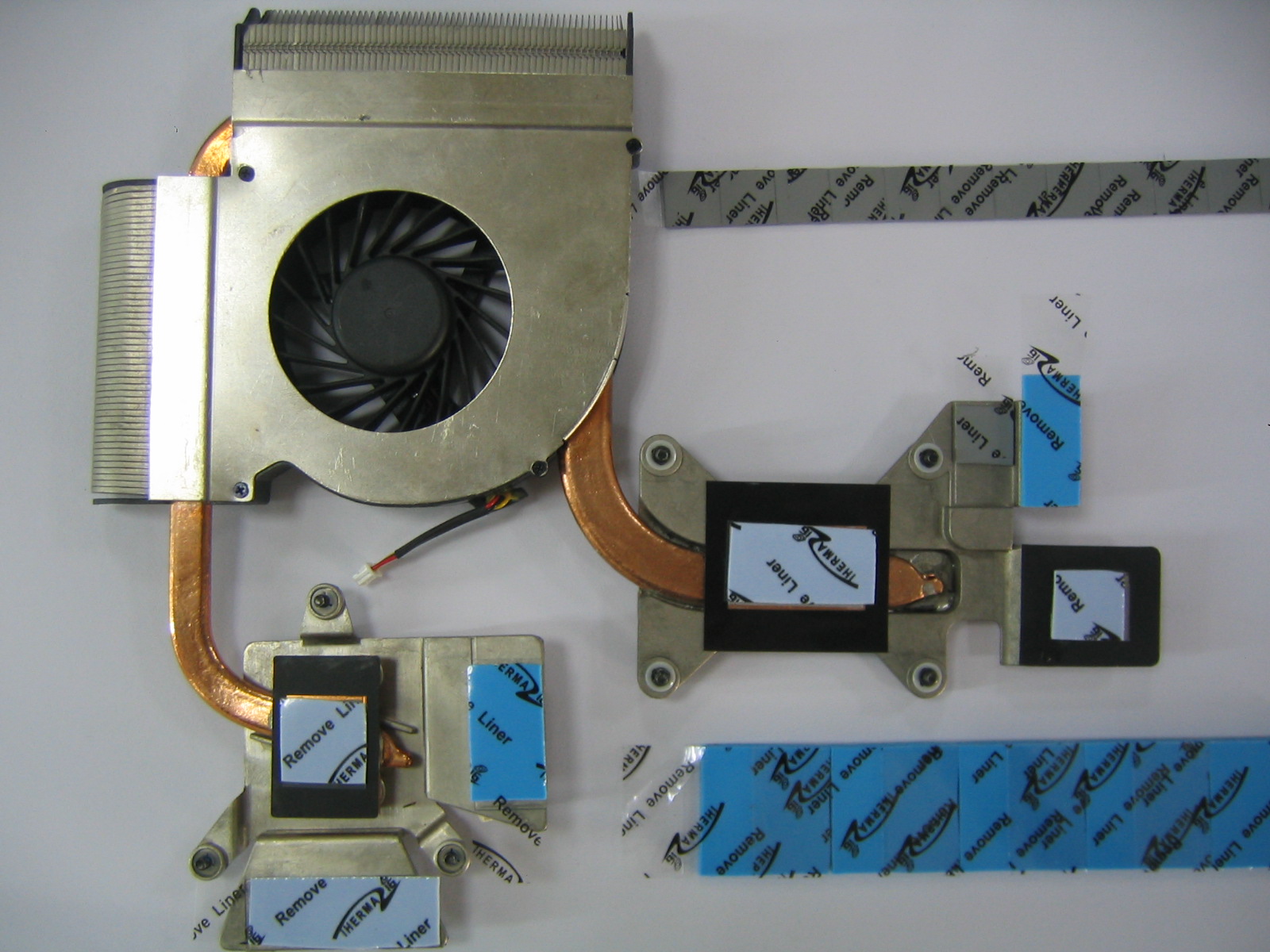

The TIF100-12E is a silicone based, thermally conductive gap pad. Its
unreinforced construction allows additional compliancy. This
product has low hardness is conformable and is electrically
isolating. The low modulus characteristic of the product offers
optimal thermal performance with the ease of handling
Features:
| Available in varies thicknesses 1.5 W/mK |
| Broad range of hardnesses available |
| Moldability for complex parts |
| Outstanding thermal performance |
| High tack surface reduces contact resistance |
| RoHS compliant |
Applications:
| CD-Rom, DVD-Rom cooling |
| LED Power Supply |
| LED Controller |
| LED Ceilinglamp |
| Monitoring the Power Box |
| AD-DC Power Adapters |
| Rainproof LED Power |
| Waterproof LED Power |
| SMD LED module |
| LED Flesible strip, LED bar |
Typical Properties of TIF100-12E Series |
Color | Blue | Visual | Composite Thickness | hermalImpedance
@10psi
(℃-in²/W) |
Construction &
Compostion | Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.36 |
| 20mils / 0.508 mm | 0.41 |
Specific Gravity | 2.75 g/cc | ASTM D297 | 30mils / 0.762 mm | 0.47 |
40mils / 1.016 mm | 0.52 |
Heat Capacity | 1 l /g-K | ASTM C351 | 50mils / 1.270 mm | 0.58 |
60mils / 1.524 mm | 0.65 |
Hardness | 45 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 0.72 |
80mils / 2.032 mm | 0.79 |
Tensile Strength | 45 psi | ASTM D412 | 90mils / 2.286 mm | 0.87 |
100mils / 2.540 mm | 0.94 |
Continuos Use Temp | -50 to 200℃ | *** | 110mils / 2.794 mm | 1.01 |
120mils / 3.048 mm | 1.09 |
Dielectric Breakdown Voltage | >10000 VAC | ASTM D149 | 130mils / 3.302mm | 1.17 |
140mils / 3.556 mm | 1.24 |
Dielectric Constant | 5.5 MHz | ASTM D150 | 150mils / 3.810 mm | 1.34 |
160mils / 4.064 mm | 1.42 |
Volume Resistivity | 7.8X10" Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 1.50 |
180mils / 4.572 mm | 1.60 |
Fire rating | 94 V0 | equivalent UL | 190mils / 4.826 mm | 1.68 |
200mils / 5.080 mm | 1.77 |
Thermal conductivity | 1.5W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm)
0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm)
0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm)
0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
