LED Light 2.5 W/m.k Thermal Silicon Pad Thermal Conductive Pad Thermal Gap Pad With Thermal Management Solution

Ask Lasest Price
Brand Name :	ZIITEK
Model Number :	TIF100-16-38UF
Certification :	UL and RoHs
Price :	negotiation
Supply Ability :	10000/day
Delivery Time :	3-5work days

Add to Cart

Product Details
Company Profile

LED Light 2.5 W/m.k Thermal Silicon Pad Thermal Conductive Pad Thermal Gap Pad With Thermal Management Solution

LED Light 2.5 W/m.k Thermal Silicon Pad Thermal Conductive Pad Thermal Gap Pad With Thermal Management Solution

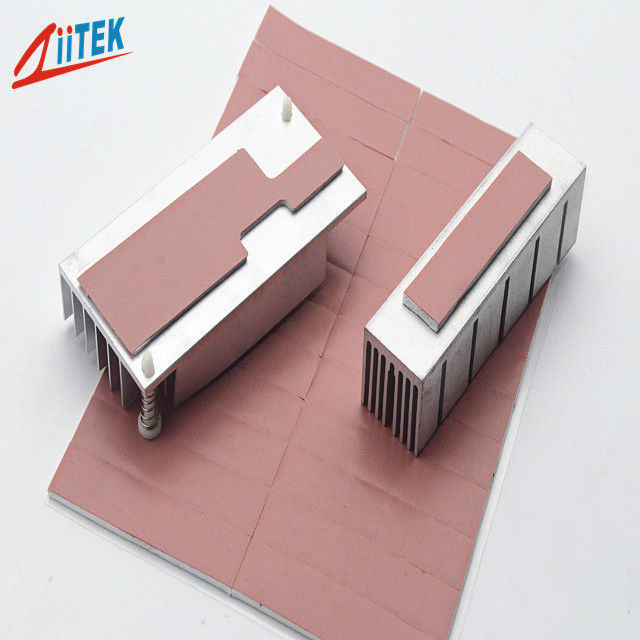

The TIF100-16-38UF thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

TIF100-16-38UF-Series-Datasheet-rev3.pdf

LED Light 2.5 W/m.k Thermal Silicon Pad Thermal Conductive Pad Thermal Gap Pad With Thermal Management Solution
Features:

> Good thermal conductive: 1.6 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

Applications:

> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar

Typical Properties of TIF100-16-38UF Series
Color	Pink	Visual	Composite Thickness	hermalImpedance @10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone rubber	***	10mils / 0.254 mm	0.36
			20mils / 0.508 mm	0.41
Specific Gravity	2.1 g/cc	ASTM D297	30mils / 0.762 mm	0.47
			40mils / 1.016 mm	0.52
Heat Capacity	1 l /g-K	ASTM C351	50mils / 1.270 mm	0.58
			60mils / 1.524 mm	0.65
Hardness	65 Shore 00	ASTM 2240	70mils / 1.778 mm	0.72
			80mils / 2.032 mm	0.79
Tensile Strength	45 psi	ASTM D412	90mils / 2.286 mm	0.87
			100mils / 2.540 mm	0.94
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	1.01
			120mils / 3.048 mm	1.09
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.17
			140mils / 3.556 mm	1.24
Dielectric Constant	5.5 MHz	ASTM D150	150mils / 3.810 mm	1.34
			160mils / 4.064 mm	1.42
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257	170mils / 4.318 mm	1.50
			180mils / 4.572 mm	1.60
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.68
			200mils / 5.080 mm	1.77
Thermal conductivity	1.6W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.

Company Profile

Dongguan Zhaoke Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

FAQ:

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.

Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.
