Excellent Thermal Conductive Plastic for LED Lamp Cup 150℃ Heat
Deflection Temperature
Company Profile
With a wide range, good quality, reasonable prices and stylish
designs, Ziitek thermal conductive interface materials are
extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2
products, CD-ROM ,LCD TV, PDP products, Server Power products, Down
lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power
products and others.
TCP™100-50-01A is a Thermally Conductive Engineering Plastic developed for the
housing design which requires high thermally conductivity and
reduces the weight more than 30% comparing with the same aluminium
devices.
Application

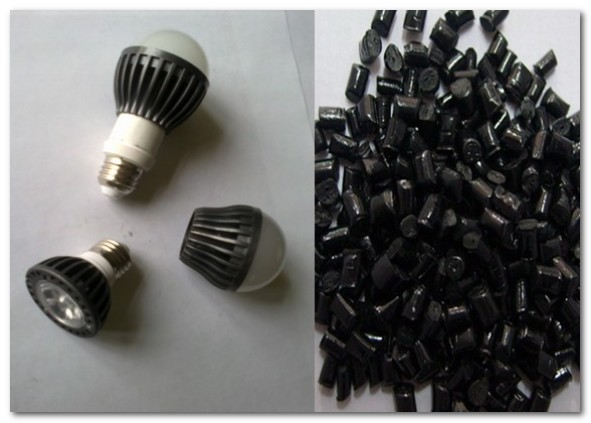

TCP™100-50-01A can be used in applications such as Heat Sinking
Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as
MR16. Also it can replace the normal Aluminum heat sink.
Features
> Good thermal conductivity: 5.0W/mK
> Excellent thermal conductivity compared to normal engineering plastics
> Lighter than normal Aluminum housing 30% in weight
> Excellent mould ability in injection moulding
> Much higher production yield than normal Aluminum Die Casting
> Excellent flexibility in designing final products such as housings.
> UL94 V-0.
| Typical Properties of TCPTM100-50-01A |
| Items | Test method | Unit | Typical data |
| Physical Properties |
| Color | Visual | ***** | Black |
| Melt index | ISO 1133 | g/10min | 4 |
| Specific Gravity | ISO 1183 | g/cm3 | 1.45 |
| Shrinkage | ISO 294 | % | 0.1 |
| Mechanical Properties |
| Tensile Strength | ISO 527 | MPa | 55 |
| Flexural Strength | ISO 178 | MPa | 80 |
| Flexural Modulus | ISO 178 | MPa | 15800 |
| Impact Strength, notched | ISO 180 | kJ/m2 | 2.5～3.5 |
| Electrical Properties |
| | | |
| Dielectric Constant, 1MHz | ASTM D150 | ***** | 4.5 |
| Volume Resistivity | ASTM D257 | Ohm-meter | 10000 |
| Thermal Properties |
| Heat Deflection Temperature | ASTM D648 | ℃ | 150 |
| Thermal Conductivity In Plane | ASTM E1461 | W/m-K | 15 |
| Thermal Conductivity Throngh Plane | ASTM E1461 | W/m-K | 5.0 |
| Flame retardancy | Min. thick. 1.0mm | Class | V-0 |
a. Pre-Drying : 4 hrs. @ 80℃ by Hopper Dryer
b. Recommendable Process Temperature at molding machine
- Nozzie : 280℃
- Front : 270℃
- Middle : 260℃
- Rear : 250℃
c. Cycle time : 30sec
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality
control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
