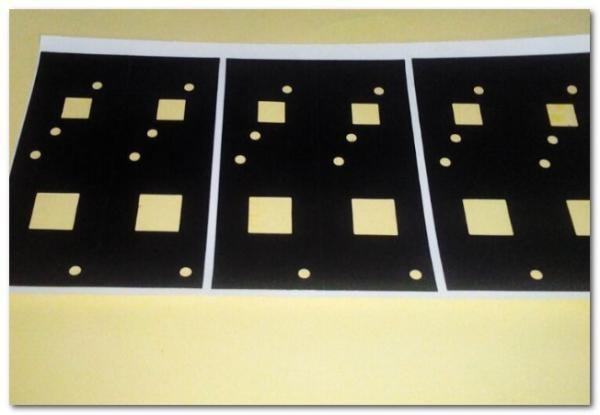

    foil High Dielectric Strength PET Double Sided Tape with 0.25mm Thickness, -30 - 120 Degree

    Ask Lasest Price
    Brand Name : Ziitek
    Model Number : Z-paster2250-PE series
    Certification : RoHs
    Supply Ability : 10000PCS/Day
    Delivery Time : 2-3 work day
    • Product Details
    • Company Profile

    foil High Dielectric Strength PET Double Sided Tape with 0.25mm Thickness, -30 - 120 Degree

    High Dielectric Strength PET Double Sided Tape with 0.25mm Thickness -30 - 120 Degree


    Z-paster2000-PE series is a insulators grade PET foil double coated with a special aggressive acrylic adhesive system with high quick stick, excellent acrylic cohesive strength, good low temperature performance and excellent high temperature resistance.


    Z-paster2000-PE series
    Property2080-PE2130-PE2250-PE2380-PE
    PET Foil Thickness (mm)0.025± 0.0050.075± 0.0050.188± 0.010.32± 0.01
    Total Thickness (mm)0.08± 0.0150.13± 0.0150.25± 0.020.38± 0.025
    Tensile (N / 25mm width)135160260350
    Elongation (%)1.50.90.60.4
    Adhesion: Peel (PSTC #1) N / 25mm width32.832.832.832.8
    Adhesion: Shear (PSTC #7) 24+ hrs @ Kpa0.60.60.60.6
    Low Temperature Application (oC)17.917.917.917.9
    High Temperature Resistance (oC)120120120120
    Low environmental Resistance (oC)-30-30-30-30
    Release Liner83 lb.polycoated densified paper

    Certifications:

    ISO9001:2015

    ISO14001: 2004 IATF16949:2016

    IECQ QC 080000:2017

    UL


    Company Profile


    Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.


    Why Choose us ?


    1.Our value message is'' Do it right the First time, total quality control''.

    2.Our core competencies is thermal conductive interface materials

    3.Competitive advantage products.

    4.Condidentiality agreement Bussiness Secrect Contract

    5.Free sample offer

    6.Quality assurance contract
