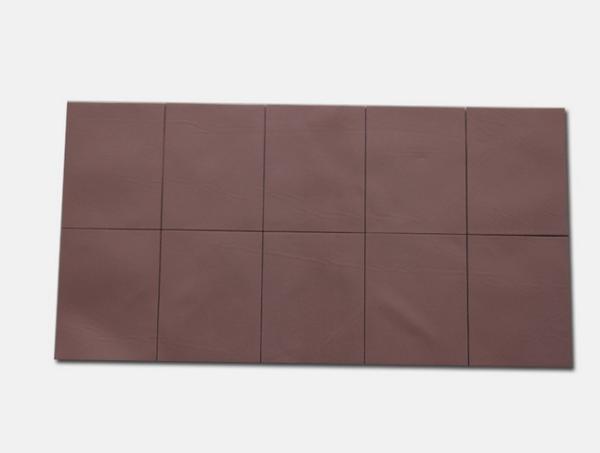

Heat Sinking Housing Conductive Garnet Thermal Gap Filler 6.0 W/MK UL / RoHs silicone rubber pad 45shore00

The TIF600GP is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

TIF600GP Series Datasheet-(E)-REV01.pdf

Features:

> Good thermal conductive:6.0 W/mK

> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

Applications:

> Cooling components to the chassis of frame
> High speed mass storage drives
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

Typical Properties of TIF™600GP Series
Color	Garnet	Visual	Composite Thickness	hermalImpedance @10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone rubber	***	10mils / 0.254 mm	0.21
			20mils / 0.508 mm	0.27
Specific Gravity	3.18 g /cc	ASTM D297	30mils / 0.762 mm	0.39
			40mils / 1.016 mm	0.43
Heat Capacity	1 l /g-K	ASTM C351	50mils / 1.270 mm	0.50
			60mils / 1.524 mm	0.58
Hardness	45 Shore 00	ASTM 2240	70mils / 1.778 mm	0.65
			80mils / 2.032 mm	0.76
Tensile Strength	55 ps	ASTM D412	90mils / 2.286 mm	0.85
			100mils / 2.540 mm	0.94
Continuos Use Temp	-50 to 200℃	***	110mils / 2.794 mm	1.00
			120mils / 3.048 mm	1.07
Dielectric Breakdown Voltage	>10000 VAC	ASTM D149	130mils / 3.302mm	1.16
			140mils / 3.556 mm	1.25
Dielectric Constant	4.5 MHz	ASTM D150	150mils / 3.810 mm	1.31
			160mils / 4.064 mm	1.38
Volume Resistivity	8X1012Ohm-meter	ASTM D257	170mils / 4.318 mm	1.43
			180mils / 4.572 mm	1.50
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.60
			200mils / 5.080 mm	1.72
Thermal conductivity	6 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

16" x 18"(406mm x 457mm)

TIF™ series Individual die cut shapes can be supplied.

Dongguan Ziitek Electronical Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

Ziitek D-U-N-S® Number: 656191068
