black 150℃ Nylon Heat Sinking Thermal Conductive Plastic TCP 300PS-01PA , 0.8W-mK , RoHs and UL 1.65g/cm3, 94V0

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TCP 300PS-01PA
Certification :	RoHs and UL
Supply Ability :	1000KG/day

Add to Cart

Product Details
Company Profile

black 150℃ Nylon Heat Sinking Thermal Conductive Plastic TCP 300PS-01PA , 0.8W-mK , RoHs and UL 1.65g/cm3, 94V0

Black 150℃ Nylon Heat Sinking Thermal Conductive Plastic TCP 300PS-01PA , 0.8W-mK , RoHs and UL 1.65g/cm3, 94V0

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

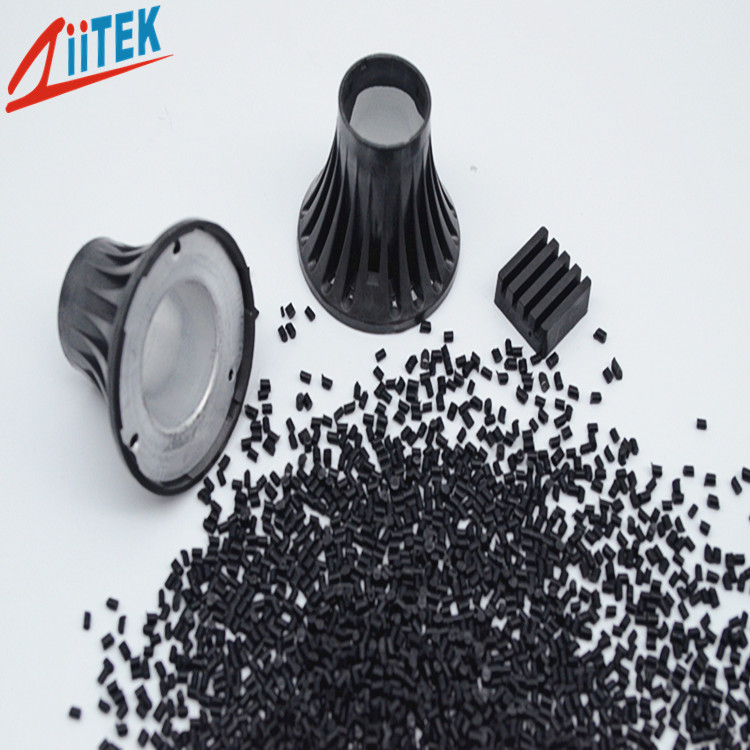

TCP™ 300PS-01PA is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.

Application

To potting LED Lighting heat spreader and power- driver.

Ferrite cements

Relay sealant

Power transformers and coils

tip type LED

PCB and plastics

small electrical devices

IGBTs

Transformer

LED Power Supply

LED Controller

LED Lights

LED Ceilinglamp

Monitoring the Power Box

AD-DC Power Adapters

Rainproof LED Power Supply

Waterproof LED Power Supply

Piranha wroof and common lED module

LED module for Channelletters

SMD LED module

LED Flesible strip, LED bar

LED PanelLight

LED floot light

Features

> Good thermal conductivity: 0.8W/mK
> Excellent thermal conductivity compared to normal engineering plastics
> Lighter than normal Aluminum housing 30% in weight
> Excellent mould ability in injection moulding
> Much higher production yield than normal Aluminum Die Casting
> Excellent flexibility in designing final products such as housings.
> UL94 V-0 .

> Fujipoly / Laird / Berquist Alternative

Typical Properties of TCP™ 300PS-01PA
Items	Test method	Unit	Typical data
Physical Properties
Color	Visual	*****	Black
Melt index	ISO 1133	g/10min	4
Specific Gravity	ISO 1183	g/cm3	1.65
Shrinkage	ISO 294	%	0.1
Mechanical Properties
Tensile Strength	ISO 527	MPa	50
Flexural Strength	ISO 178	MPa	65
Flexural Modulus	ISO 178	MPa	12000
Impact Strength, notched	ISO 180	kJ/m2	3～4
Electrical Properties
Dielectric Breakdown Voltage	ASTM D149	VAC	>10000
Dielectric Constant, 1MHz	ASTM D150	*****	4.5
Volume Resistivity	ASTM D257	Ohm-meter	7.0 X 1012
Thermal Properties
Heat Deflection Temperature	ASTM D648	℃	150
Thermal Conductivity In Plane	ASTM E1461	W/m-K	8
Thermal Conductivity Throngh Plane	ASTM E1461	W/m-K	0.8
Flame retardancy	Min. thick. 1.0mm	Class	V-0

a. Pre-Drying : 4 hrs. @ 80℃ by Hopper Dryer

b. Recommendable Process Temperature at molding machine

- Nozzie : 280℃

- Front : 270℃

- Middle : 260℃

- Rear : 250℃

c. Cycle time : 30sec

Advantage

Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
