Specific Gravity 2.8 G/Cm^3 Moldability For Complex Parts Thermal Pad For LED Bar

Ask Lasest Price
Brand Name :	ZIITEK
Model Number :	TIF240-20-02ES thermal pad
Certification :	UL and RoHs
Price :	negotiation
Supply Ability :	100000pcs/day
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

Specific Gravity 2.8 G/Cm^3 Moldability For Complex Parts Thermal Pad For LED Bar

Specific Gravity 2.8 g/cm^3 Moldability for Complex Parts Thermal Pad for LED Bar

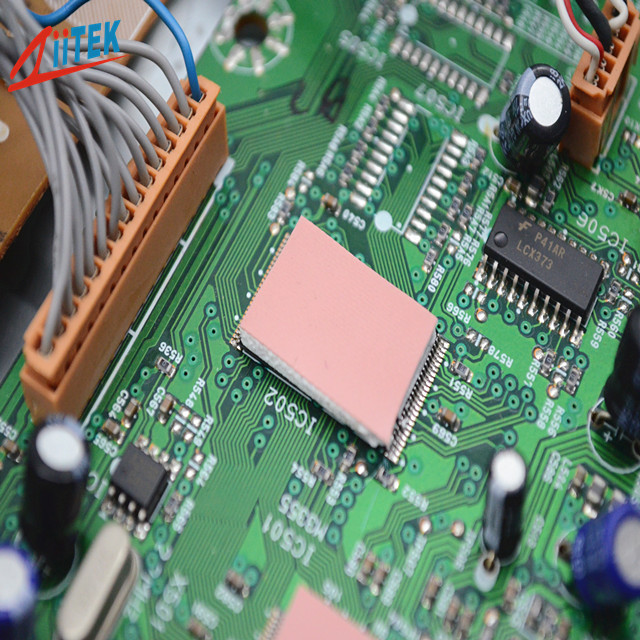

The TIF240-20-02ES is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

TIF200-20-02ES-Series-Datasheet.pdf

Features

> Good thermal conductive: 2.0 W/mK

>Thickness: 1.0mmT

>hardness:10 shore 00

>Colour: Pink/White

>Good thermal conductive
>Moldability for complex parts
>Soft and compressible for low stress applications

Applications

>Waterproof LED Power

>SMD LED module

>LED Flesible strip, LED bar

>LED PanelLight

>LED floor light

>Routers

Typical Properties of TIF240-20-02ES Series
Color	Pink/White	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	2.8 g/cm³	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	1.0mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	10 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Thermal conductivity	2.0W/mk	ISO22007-2.2	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5000 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	5.0 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	2.0 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

FAQ:

Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.

Q: What is your terms of payment ?

A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.
