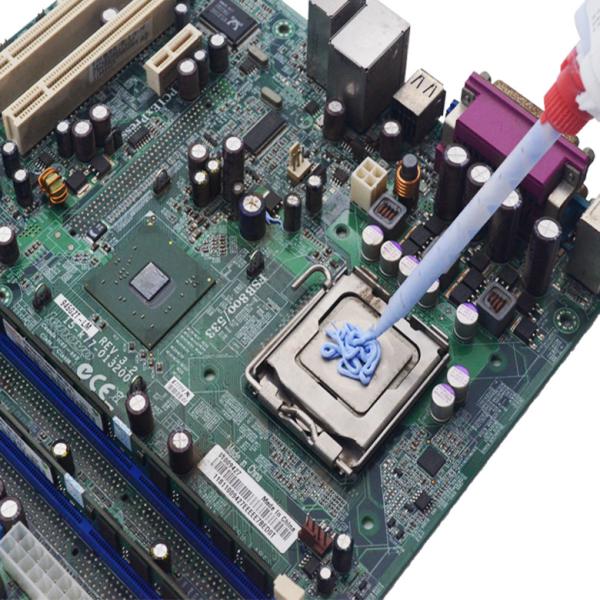

Good Performance 3.0W/mk Thermally Conductive Putty For Mainboard
and Mother Board
Company Profile
With a wide range, good quality, reasonable prices and stylish
designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks,
DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power
products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED
Server Power products and others.
TIF030AB-05S-Datasheet-REV02.pdf
Ziitek TIF030AB-05S is a highly thermal conductive, liquid gap filling material. It is
provide with two-component and different temperature curing system.
The product was supplied as highly thermal conductive, soft and
elastomer for coupling on electrical devices modul. Heat can
transmit to the metal housing or dissipation plate from the
separate elements or even the entire PCB, which in effect enhances
the efficiency and life-time of the heat-generating electronic
components. It is liquid approach offer variety of thickness,
replacing individual die-cut and specific pad thickness. Different
from grease, the cured product is dry and can be touch. It can
intented for use in thermal applications.
< Good thermal conductive: 3.0W/mK
< UL recognized
< Naturally tacky needing no further adhesive coating
< Two-part formulation for easy storage
< High durability
< Optimized shear thinning characteristics for ease of
dispensing
Applications
< Notebook
< Set top boxes
< Monitoring the Power Box
< High speed mass storage drives
< Heat sink any heat generating semiconductor
| Typical Properties of TIF030AB-05S Series |
| Typical Uncured Material |
| Property | Numerical | Test Method |
| Color/Part A | White | Visual |
| Color/Part B | blue | Visual |
| Viscosity as Mixed (cps) | 900,000 cps | GB/T 10247 |
| Density | 3.0g/cc | ASTM D792 |
| Mix Ratio | 1:1 | ****** |
| Shelf Life@25℃ | 6 months | ****** |
| Cure Schedule |
| Pot Life @25℃ | 30min | ****** |
| Cure @25℃ | 60min | ****** |
| Cure @100℃ | 30min | Visual |
| Cure Properties |
| Color | blue | Visual |
| Hardness | 45 shore00 | ASTM D2240 |
| Continuous Use Temp | ﹣45~200℃ | ****** |
| Voltage Strength | 200 V/mil | ASTM D149 |
| Dielectric Constant | 4.6MHz | ASTM D150 |
| Volume Resistivity | 1012 Ohm-meter | ASTM D257 |
| Flame Rating | 94V0 | E331100 |
| Thermal Conductivity | 3.0W/Mk | ISO22007-2 |
| Specific Heat Capacity | 2.2MJ/m3K | ISO22007-2 |
Product packing details:
50cc/pc, 48pcs/box; 400cc/pc, 9pcs/box
We offer the custom packaged in Syringes for automated despensing
applications. Please contact us for confirming.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries
in English of course.
Standard Export Carton Or Marked With Customer's Information Or
Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if
you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory
solution.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it
is 7-10 work days if the goods are not in stock, it is according to
quantity.
