4.0W/mK Heat Sink Silicone Thermal Conductive Putty
Company Profile
With professional R&D capabilities and over 18 year experiences
in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages.
Our goal is to provide quality & competitive products to our
customers worldwide aiming for long-term business cooperation.
TIF040AB-12S-Datasheet-REV02.pdf

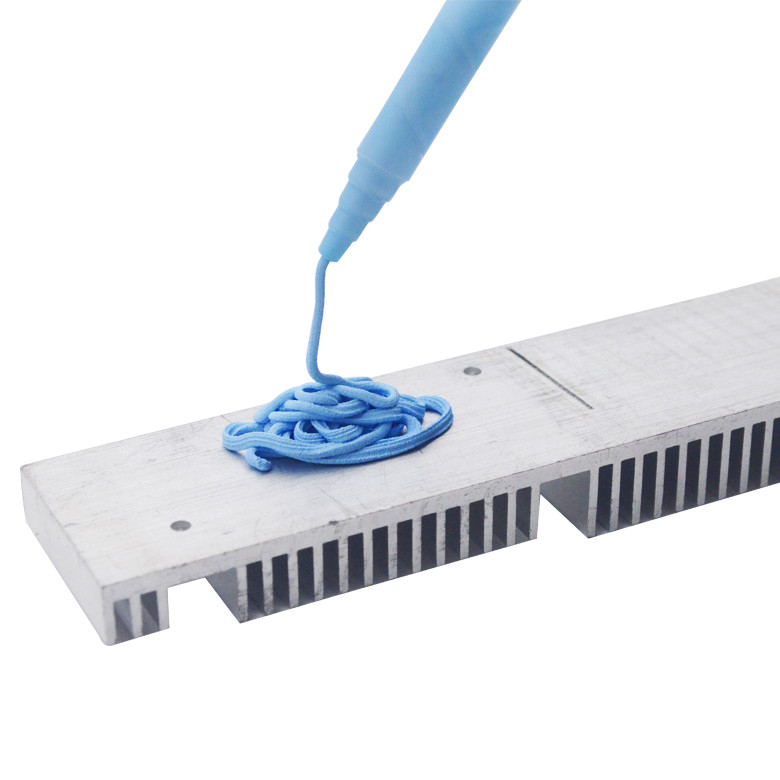

Ziitek TIF040AB-12S is a highly thermal conductive, liquid gap filling material. It is
provide with two-component and different temperature curing system.
The product was supplied as highly thermal conductive, soft and
elastomer for coupling on electrical devices modul. Heat can
transmit to the metal housing or dissipation plate from the
separate elements or even the entire PCB, which in effect enhances
the efficiency and life-time of the heat-generating electronic
components. It is liquid approach offer variety of thickness,
replacing individual die-cut and specific pad thickness. Different
from grease, the cured product is dry and can be touch. It can
intented for use in thermal applications.
< Good thermal conductive: 4.0W/mK
< UL recognized
< Naturally tacky needing no further adhesive coating
< Two-part formulation for easy storage
< High durability
< Optimized shear thinning characteristics for ease of
dispensing
Applications
< Notebook
< Set top boxes
< Monitoring the Power Box
< High speed mass storage drives
< Heat sink any heat generating semiconductor
| Typical Properties of TIF040AB-12S Series |
| Typical Uncured Material |
| Property | Numerical | Test Method |
| Color/Part A | White | Visual |
| Color/Part B | Blue | Visual |
| Viscosity as Mixed (cps) | 1200,000 cps | GB/T 10247 |
| Density | 3.1g/cc | ASTM D792 |
| Mix Ratio | 1:1 | ****** |
| Shelf Life@25℃ | 6 months | ****** |
| Cure Schedule |
| Pot Life @25℃ | 30min | ****** |
| Cure @25℃ | 60min | ****** |
| Cure @100℃ | 30min | ****** |
| Cure Properties |
| Color | Blue | Visual |
| Hardness | 45 shore 00 | ASTM D2240 |
| Continuous Use Temp | -45~200℃ | ****** |
| Voltage Strength | 200 V/mil | ASTM D149 |
| Dielectric Constant | 3.9 MHz | ASTM D150 |
| Volume Resistivity | 1012 Ohm-meter | ASTM D257 |
| Flame Rating | 94V0 | E331100 |
| Thermal Conductivity | 4.0 W/Mk | ISO22007-2 |
| Specific heat capacity | 1.8 MJ/m³K | ISO22007-2 |
Product packing details:
50cc/pc, 48pcs/box; 400cc/pc, 9pcs/box
We offer the custom packaged in Syringes for automated despensing
applications. Please contact us for confirming.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team,
engineering team, R&D team, Manufacturing team, logistics team.
All is for supporting and servicing a satisfy service for
customers.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just
contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data
sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM
D5470 are utilized to test the thermal conductivity.
