1.5mmT good performance thermal conductive gap filler 20 Shore00
For LED Power Supply 1.8W / MK

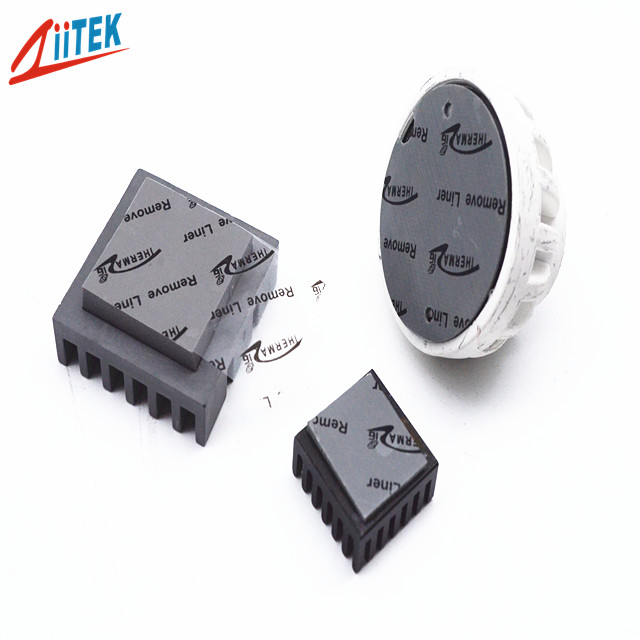

The TIF560-18-11US use a special process, with silicone as the base material, adding
thermal conductive powder and flame retardant together to make the
mixture to become thermal interface material. This is effective in
lower the thermal resistance between the heat source and the heat
sink.
TIF500-18-11US Datasheet-REV02.pdf
Features:
> Good thermal conductive: 1.8W/mK
>Thickness:1.5mmT
>Broad range of hardnesses available
>Moldability for complex parts
>RoHS compliant
>UL recognized
>Fiberglass reinforced for puncture, shear and tear resistance
Applications:
>LED Power Supply
>Handheld portable electronics
>Semiconductor automated test equipment (ATE)
>Mass storage devices
>Automotive electronics
>Set top boxes
Typical Properties of TIF™560-18-11US |
| Color | Grey | Visual | Composite Thickness | hermalImpedance
@10psi
(℃-in²/W) |
Construction &
Compostion | Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.21 |
| 20mils / 0.508 mm | 0.27 |
| Specific Gravity | 2.8 g /cc | ASTM D297 | 30mils / 0.762 mm | 0.39 |
40mils / 1.016 mm | 0.43 |
| Heat Capacity | 1 l /g-K | ASTM C351 | 50mils / 1.270 mm | 0.50 |
60mils / 1.524 mm | 0.58 |
| Hardness | 20 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 0.65 |
80mils / 2.032 mm | 0.76 |
Thickness
| 1.5mmT | *** | 90mils / 2.286 mm | 0.85 |
100mils / 2.540 mm | 0.94 |
| Continuos Use Temp | -40 to 160℃ | *** | 110mils / 2.794 mm | 1.00 |
120mils / 3.048 mm | 1.07 |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 | 130mils / 3.302mm | 1.16 |
140mils / 3.556 mm | 1.25 |
| Dielectric Constant | 4.2 MHz | ASTM D150 | 150mils / 3.810 mm | 1.31 |
160mils / 4.064 mm | 1.38 |
| Volume Resistivity | 1.0X1012 Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 1.43 |
180mils / 4.572 mm | 1.50 |
| Fire rating | 94 V0 | equivalent UL | 190mils / 4.826 mm | 1.60 |
200mils / 5.080 mm | 1.72 |
| Thermal conductivity | 1.8 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
