0.5mmT UL Recognized Thermal Conductive Gap Filler 2.5 G/Cc 18 Shore 00

Ask Lasest Price
Brand Name :	ZIITEK
Model Number :	TIF120-18-01US
Certification :	UL and RoHs
Price :	negotiation
Supply Ability :	100000pcs/day
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

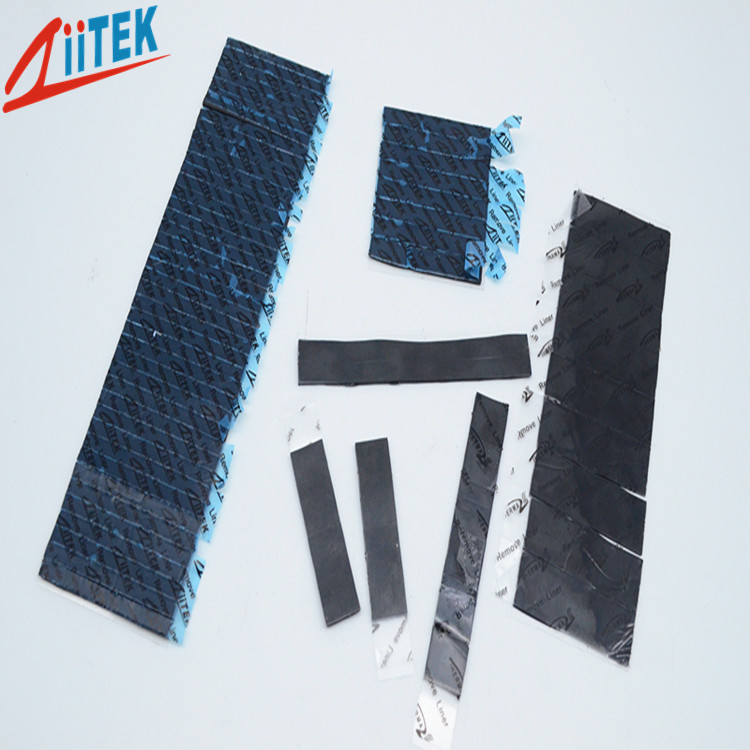

0.5mmT UL Recognized Thermal Conductive Gap Filler 2.5 G/Cc 18 Shore 00

0.5mmT UL recognized thermal conductive gap filler For Audio and video components,2.5 g/cc ,18 Shore 00

The TIF120-18-01US use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

TIF100-18-01US-Specification-sheet.pdf

Features

> Good thermal conductive: 1.8 W/mK

>Thickness:0.5mmT

>hardness:18 shore00

>Colour: black

>Soft and compressible for low stress applications

>Naturally tacky needing no further adhesive coating

>Electrically isolating

>High durability

Applications

>Heat Sinking Housing at LED-lit BLU in LCD

>LED TV and LED-lit lamps

>RDRAM memory modules

>IT infrastructure

>GPS navigation and other portable devices

>CD-Rom, DVD-Rom cooling

Typical Properties of TIF120-18-01US Series
Color	black	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone rubber	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	2.5g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	0.5mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	18 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Outgassing(TML)	0.45%	ASTM E595	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.5 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	1.8 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

FAQ

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.
