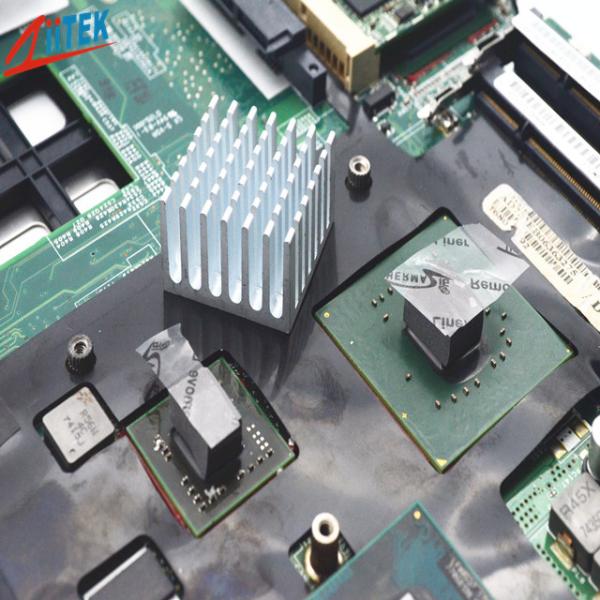

Available in varies thicknesses silicone pads for power
supply,3.15g/cm3
The TIF1120-40-11US use a special process, with silicone as the base material, adding
thermal conductive powder and flame retardant together to make the
mixture to become thermal interface material. This is effective in
lower the thermal resistance between the heat source and the heat
sink.
TIF100-40-11US-Series-Datasheet.pdf
Features
> Good thermal conductive: 4.0 W/mK
>Thickness:3.0mmT
>hardness:20 shore 00
>Colour: Gray
>Available in varies thicknesses
>Broad range of hardnesses available
>Moldability for complex parts
Applications
>Automotive engine control units
>Telecommunication hardware
>Handheld portable electronics
>Semiconductor automated test equipment (ATE)
>CPU
>display card
Typical Properties of TIF1120-40-11US Series |
Color | gray | Visual | Composite Thickness | Thermal Impedance@10psi
(℃-in²/W) |
Construction &
Compostion | Ceramic filled silicone elastomer | *** | 10mils / 0.254 mm | 0.16 |
20mils / 0.508 mm | 0.20 |
Denisty | 3.15g/cm3 | ASTM D297 | 30mils / 0.762 mm | 0.31 |
40mils / 1.016 mm | 0.36 |
| Thickness | 3.0mmT | *** | 50mils / 1.270 mm | 0.42 |
60mils / 1.524 mm | 0.48 |
Hardness | 20 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 0.53 |
80mils / 2.032 mm | 0.63 |
| Outgasing (TML) | 0.40% | ASTM E595 | 90mils / 2.286 mm | 0.73 |
100mils / 2.540 mm | 0.81 |
Continuos Use Temp | -40 to 160℃ | *** | 110mils / 2.794 mm | 0.86 |
120mils / 3.048 mm | 0.93 |
Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 | 130mils / 3.302mm | 1.00 |
140mils /3.556 mm | 1.08 |
Dielectric Constant | 4.0 MHz | ASTM D150 | 150mils / 3.810 mm | 1.13 |
160mils / 4.064 mm | 1.20 |
Volume Resistivity | 6.0X1012
Ohm-cm | ASTM D257 | 170mils / 4.318 mm | 1.24 |
180mils / 4.572 mm | 1.32 |
Fire rating | 94 V0 | equivalent
UL | 190mils / 4.826 mm | 1.41 |
200mils / 5.080 mm | 1.52 |
Thermal conductivity | 4.0 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal
conductive materials, owns advanced production equipment and optimized process, can provide
various thermal solutions for different applications.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
FAQ:
Q: What's the thermal conductivity test method given on the data
sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM
D5470 are utilized to test the thermal conductivity.
