Gray thermal conductivity Thermal Absorbing Materials TIR9120-A 40-60SHORE A 0.03-0.5mmT hardness
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too
much heat affecting its high performance when using. Plus thermal
products can control and manage heat to keep it cool to some
extent.
Applications:
Provide EMC material solutions for EMI & EMS issue for IT devices
1.1 Metal rubber absorber to conduct different microwave resonance
frequency
within the property of loss energy

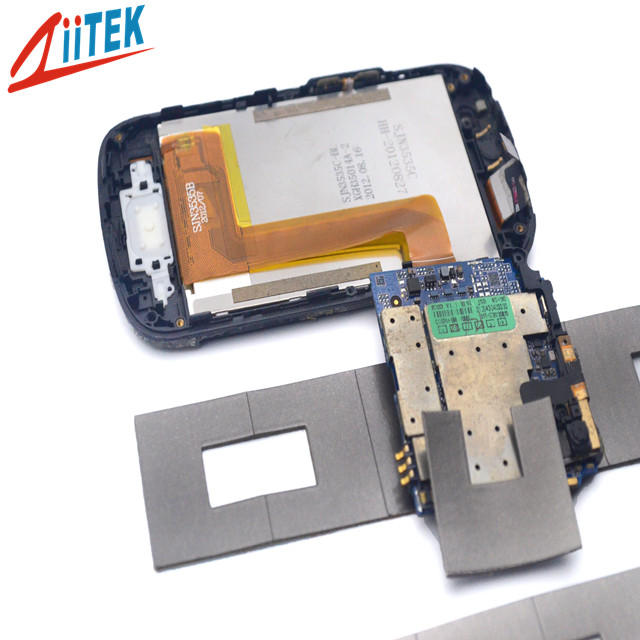

1.2 Noise suppressor for electric devices(Smart phones, Tablets,
PCs and etc)
1.3 Receiver sensitivity improvement of PEN input (inductive
coupling type)
1.4 Enhancement of NFC&WPC(PMA/WPC) function within electric
devices
| TIRTM9120-A Series Shielding Absorbing Materials |
| Classification | Unit | Values | Test Method |
| Color | NA | Gray | Visual |
| Specific gravity | g/cm3 | 2.1 | ASTM D297 |
| Surface resistance(min.) | Ω | >1 x 1016 | ASTM D257 |
| Hardness | shoreA | 40-60 | ASTM D2240 |
| Effective frequency | Hz | 10MHz-6GHz | ASTM D5470 |
| Temperature range | °C | -40 to +120 | NA |
| Storage conditions | - | 0-30°C/60%±10R.H | NA |
| Shelf life | month | 12 | NA |
| Permeability(1MHz) | u′ | 120±10 | NA |
| Thickness | mm | 0.03mmT-0.5mmT |
| Standard size | mm | 297*210mm |
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team,
engineering team, R&D team, Manufacturing team, logistics team.
All is for supporting and servicing a satisfy service for
customers.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Q&A
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and
message to us.
This message should include any questions you might have about the
products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the
process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat
dissipation. Please tell us your detailed applications and the
power, so we can recommend most suitable thermal conductive
materials.
