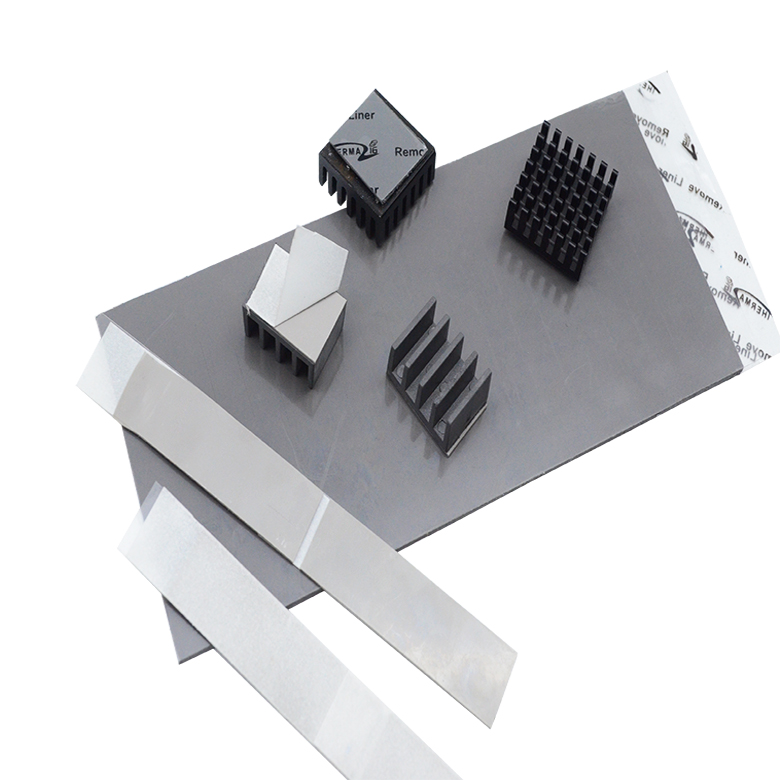

Grey Color 5W / MK Silicone Rubber Thermal Gap Pad TIF500-50-11S
For Wireless Routers
The TIF500-50-11US is not only designed to take advantage of the gap heat transfer, to
fill gaps, complete the heat transfer between heating and cooling
parts, but also played insulation, damping, sealing and so on, to
meet the equipment miniaturization and ultra-thin design
Requirements, which is a highly technology and use, and the
thickness of the wide range of applications, is also an excellent
thermal conductivity filler material.
Features:
> Good thermal conductive: 5.0W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
Typical Properties of TIF500-50-11S |
| Color | Grey | Visual | Composite Thickness | hermalImpedance
@10psi
(℃-in²/W) |
Construction &
Compostion | Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.21 |
| 20mils / 0.508 mm | 0.27 |
| Specific Gravity | 3.15 g /cc | ASTM D297 | 30mils / 0.762 mm | 0.39 |
40mils / 1.016 mm | 0.43 |
| Heat Capacity | 1 l /g-K | ASTM C351 | 50mils / 1.270 mm | 0.50 |
60mils / 1.524 mm | 0.58 |
| Hardness | 45 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 0.65 |
80mils / 2.032 mm | 0.76 |
| Tensile Strength | 55 ps | ASTM D412 | 90mils / 2.286 mm | 0.85 |
100mils / 2.540 mm | 0.94 |
| Continuos Use Temp | -40 to 160℃ | *** | 110mils / 2.794 mm | 1.00 |
120mils / 3.048 mm | 1.07 |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 | 130mils / 3.302mm | 1.16 |
140mils / 3.556 mm | 1.25 |
| Dielectric Constant | 4.0 MHz | ASTM D150 | 150mils / 3.810 mm | 1.31 |
160mils / 4.064 mm | 1.38 |
| Volume Resistivity | 4.0X1012 Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 1.43 |
180mils / 4.572 mm | 1.50 |
| Fire rating | 94 V0 | equivalent UL | 190mils / 4.826 mm | 1.60 |
200mils / 5.080 mm | 1.72 |
| Thermal conductivity | 5.0 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm)
0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm)
0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm)
0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
