TIF045-01 is a soft silicone putty thermal gap filler,which blend with
exclusive formula,that offer superior thermal performance, and
compressibility. Due to TIF045-01 is made by high vicosity silicon
oil ,that can prevent thermal formula seprate from it. Besides
,compared with traditionally thermal pad, it can control bonded
shifiting issue much better.
TIF045-01 operation mold is simliar as grease ,such as silkprint and screen
print or automatic injected facility. TIF045-01 can be applied on
chip micro processor,PPGAs,Micro BGA package,BGA package,DSP
chip,LED lighting and other high power electric component .
Application
>Heat-sink & frame
>LED backlight module,LED lighting
>High speed hardware driver
>Micro heat pipe ,Vihicel enginee controler
>Telecom industry
Feature
>Thermal conductivity: 4.5W/mK
>Soft, very low compression
>Operate automaticly
| TIFTM045-01 Property |
| Color | Black | Visual |
| Construction & Composition | Ceramic filled silicon material | ********** |
| Viscosity | 4000,000cps | GB/T 10247 |
| Specific Gravity | 2.95 g/cc | ASTM D297 |
| Thermal conductivity | 4.5 W/mK | ISO 22007-2 |
| Thermal diffusivity | 1.651 mm2/s | ISO 22007-2 |
| Specific heat capacity | 2.7 MJ/m3K | ISO 22007-2 |
| Continuous Use Temperature | -45 ~200°C | ****** |
| Dielectric breakdown strength | 200 V/mil | ASTM D149 |
| Flame Rating | 94V0 | E331100 |
| Outgassing,%TML | 0.65% | ASTM E595 |

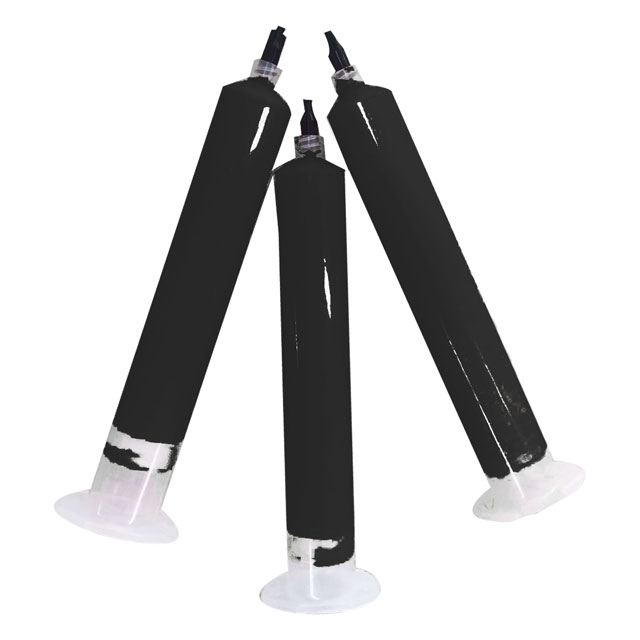

Package :
30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box
We offer the custom packaged in syringes for automated despensing
applications.Please contact us for confirming.
