Ultra Soft Thermally Conductive Sheet Thermal Gap Pad Thermal Gap Filler For Low Stress Applications

With professional R&D capabilities and over 19 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

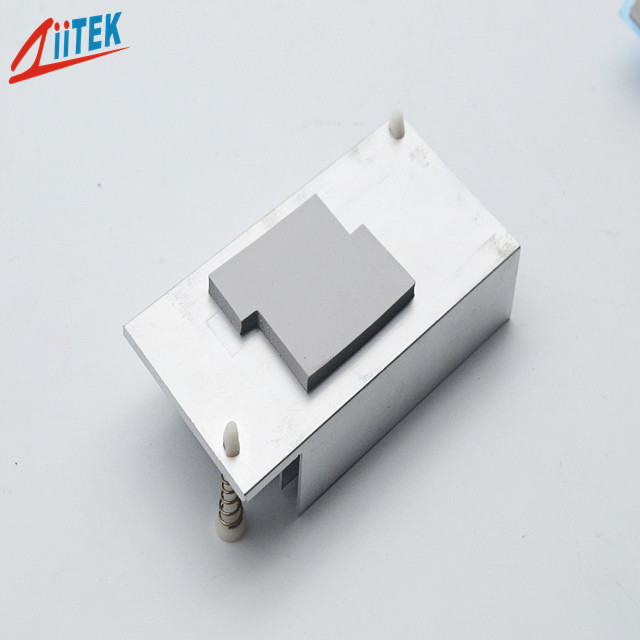

The TIF120-02F Series thermally conductive interface materials are applied to fillthe air gaps between the heating elements and the heat dissipation fins or themetal base.Their flexibility and elasticity make them suited to coat very unevensurfaces. Heat can transmit to the metal housing or dissipation plate from theheating elements or even the entire PCB, which effecitly enhances the efficiencyand life-time of the heat-generating electronic components.

Features:

> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant

Applications

> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics

Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

Dongguan Ziitek Electronical Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

Ziitek D-U-N-S® Number: 656191068
