Thermal Management Materials 1.5W Silicone thermal gap pad for Chip
heat dissipation
Company profile
Dongguan Zhaoke Electronic Material Technology Co., Ltd. was
established in 2006. Is a high-tech enterprise specializing in the
research, development, production and sales of thermal interface
materials. We mainly produce: heat-conducting joint filler, low
melting point thermal interface materials, heat-conducting
insulator, heat-conducting adhesive tape, heat-conducting interface
pad and heat-conducting grease, heat-conducting plastic, silicone
rubber, silicone rubber foam, etc. We adhere to the business
philosophy of "survival by quality, development by quality", and
continue to provide the most efficient and best service for new and
old customers with excellent quality in the spirit of rigor,
pragmatism and innovation.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Product introduction

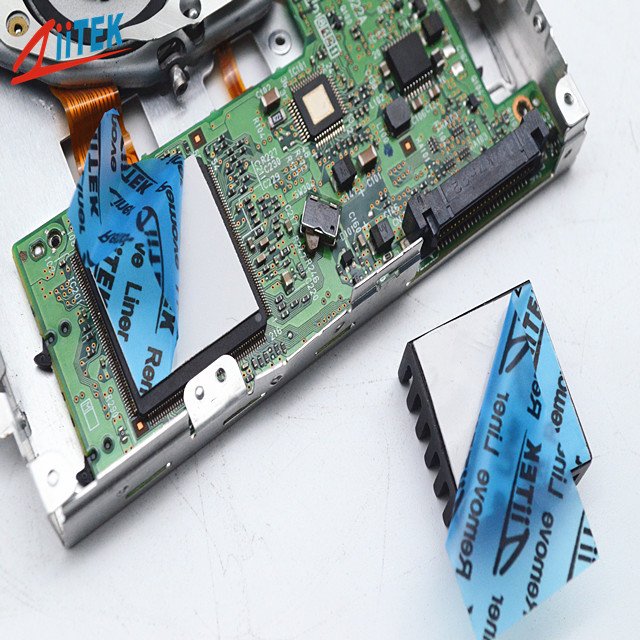

The TIF1120--15-02S Series is recommended for applications that require a minimum amount of
pressure on components. The viscoelastic nature of the material
also gives excellent low-stress vibration dampening and shock
absorbing characteristics. Ziitek TIF1120-15-02F is an electrically isolating material, which allows its use in
applications requiring isolation between heat sinks and
high-voltage, bare-leaded devices.
TIF100-02S
Datasheet-REV02.pdf
Features
● RoHS compliant 1.5W/mK
● UL recognized
● Fiberglass reinforced for puncture, shear and tear resistance
● Supplied with protective liners for ease of use
● Electrically isolating
● High durability
Applications
● Cooling components to the chassis of frame
● High speed mass storage drives
● Heat Sinking Housing at LED-lit BLU in LCD
● LED TV and LED-lit lamps
● RDRAM memory modules
● Micro heat pipe thermal solutions
● Automotive engine control units
Typical Properties of TIF1120--15-02S Series |
Color | gray | Visual | Composite Thickness | hermalImpedance
@10psi
(℃-in²/W) |
Construction &
Compostion | Ceramic filled silicone elastomer | *** | 10mils / 0.254 mm | 0.48 |
| 20mils / 0.508 mm | 0.56 |
Specific Gravity | 2.3 g/cc | ASTM D297 | 30mils / 0.762 mm | 0.71 |
40mils / 1.016 mm | 0.80 |
Heat Capacity | 1 l/g-K | ASTM C351 | 50mils / 1.270 mm | 0.91 |
60mils / 1.524 mm | 0.94 |
Hardness | 45±5 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 1.05 |
80mils / 2.032 mm | 1.15 |
Tensile Strength | 40 psi | ASTM D412 | 90mils / 2.286 mm | 1.25 |
100mils / 2.540 mm | 1.34 |
Continuos Use Temp | -40 to 160℃ | *** | 110mils / 2.794 mm | 1.43 |
120mils / 3.048 mm | 1.52 |
Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 | 130mils / 3.302mm | 1.63 |
140mils / 3.556 mm | 1.71 |
Dielectric Constant | 4.5 MHz | ASTM D150 | 150mils / 3.810 mm | 1.81 |
160mils / 4.064 mm | 1.89 |
Volume Resistivity | 1.0X10¹²" Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 1.98 |
180mils / 4.572 mm | 2.07 |
Flame rating | 94 V0 | equivalent UL | 190mils / 4.826 mm | 2.14 |
200mils / 5.080 mm | 2.22 |
Thermal conductivity | 1.5 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm)
0.050" (1.27mm)
0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm)
0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm)
0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm)
0.200" (5.08mm)
Consult the factory alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
