5.0W Phase Change Silicone Pad Sheet Laptop Phase Change Silicone
Material CPU Thermal Conductive Phase Changing Materials

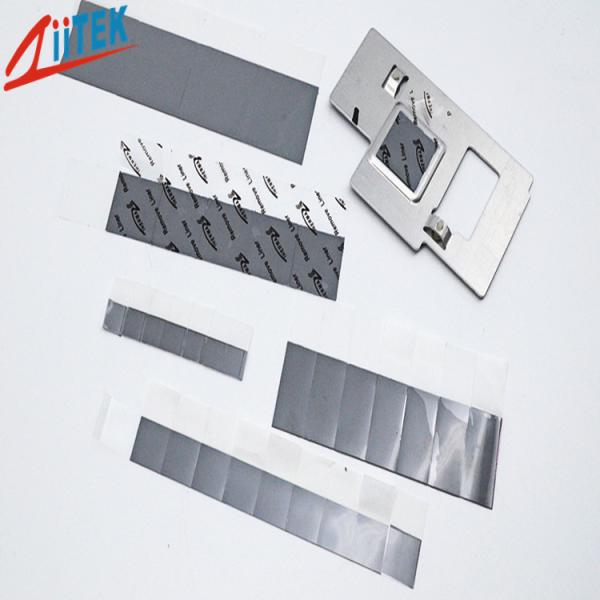

The TIC™800G-ST series phase change thermal pad is a type of
thermal Phase Change composite Material, specifically designed for
applications requiring repeated assembly,such as filling the gaps
between removable optical modules and heat sinks. It exhibits
superior thermal conductivity and excellent adhesion, making it
easy to affix to heat sinks. Moreover, its special thermal film
composite material can with stand multiple plug-ins and removals of
the optical module without rupturing, protecting the surfaces of
the heat sink and optical module while reducing thermal resistance,
providing an excellent thermal management solution for high-power
optical modules. The standard sizes offered by TIC™800G-ST series
can meet the thermal design requirements of most opticalmodules.
Features
> Sustained good thermalconductivity
> Supports multiple insertionand removal
> Easy to stick to the module
> Excellent surfacewetting
> Low contact resistance
Applications
> Optical module
> Servers,network switch.Router
> Data lnfrastructure
> Network Equipment
| Typical Properties of TIC™800G-ST series |
| Product Name | TIC™805G-ST10 | TIC™805G-ST20 | TIC™805G-ST30 | Test Method |
| Color | Gray | Visual |
| Composite Thickness | 0.005"/0.127mm | 0.005"/0.127mm | 0.005"/0.127mm | ASTM D374 |
| MT Kapton Thickness | 0.004"/0.01mm | 0.0008"/0.02mm | 0.0012"/0.03mm | ASTM D374 |
| Total Thickness | 0.0054"/0.137mm | 0.0058"/0.147mm | 0.0062"/0.157mm | ASTM D374 |
| Density | 2.6 g/cm³ | ASTM D792 |
| Recommended Operating Temp | -45 to 125℃ | Ziitek Test Method |
| Phase Change temperaure | 50 to 60℃ | Ziitek Test Method |
| PCM thermal resistance @50psi (℃-in2/W) | 0.014 | ASTM D5470 |
| Thermal conductivity | 5.0W/mK | ASTM D5470 |
| Thermal resistance @50psi(℃-in²/W) | 0.082 | 0.085 | 0.165 | ASTM D5470 |
| Flame resistance @ 0.8mm Aluminum plate | V-0 | UL 94 |
Standard Thicknesses and Sizes:
0.005"(0.127mm), 0.008"(0.203mm), 0.010(0.254mm), 0.0012(0.305mm)
For other thickness requirements, please contact our company.
Standard Sizes:
10” x 16"(254mm x 406mm) 16”X 400’(406mm x 121.92M)
For other thickness requirements, please contact our company.
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting
point thermal interface materials, thermal conductive insulators,
thermally conductive tapes, electrically & thermally conductive
Interface pads and thermal grease,Thermal Conductive
plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials
products, with well-equipped testing equipment and strong technical
force.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it
is 7-10 work days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
