1.5W/mK Two Component Thermal Conductive Adhesive for LED Panel
Light Potting
Product Summary:
TIS™680-15AB is a two-component, high thermal conductive, low
temperature cured, long pot life , fire resistant Silica
encapsulant glue. lt is design for potting of capacitors and
electrical devices.Their flexibility and elasticity make them
suited to the coating of the very uneven surfaces. Heat can
transmit to the metal housing or dissipation plate from the
separate elements or even the entire PCB, which in effect enhances
the efficiency and lfe-time of the heat-generating electronic
components.
Feature
> Good thermal conductivity: 1.5W/mK
> Excellent insulation and smoothly sourface.
> Low shrinkage
> Low viscosity, expediting air releaseed.
> Excellent in solvents and water proof.
> Longer life time.
> Excellent thermal shock efficiecy and impact resistance
Application

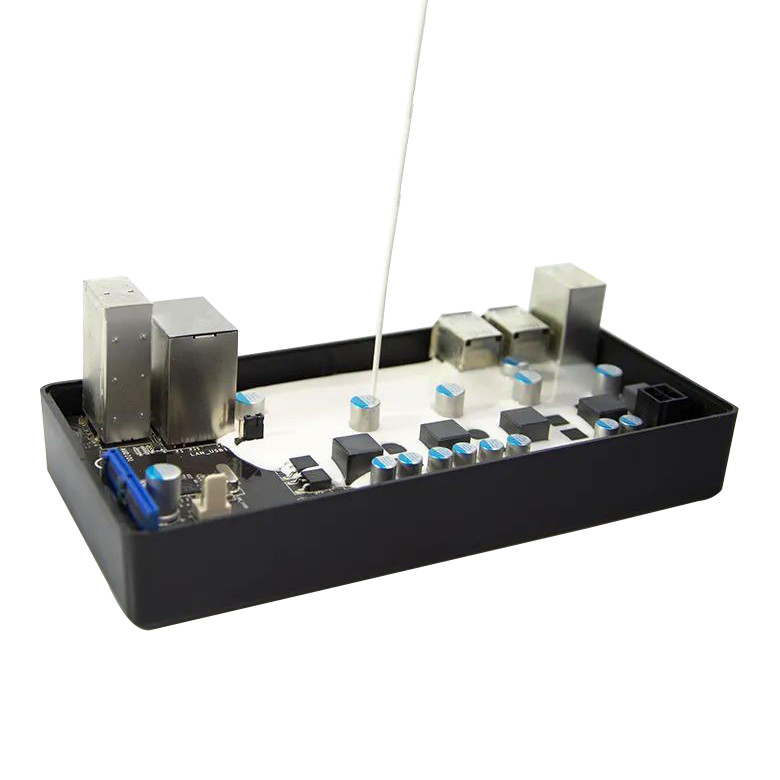

> To potting LED Lighting heat spreader and power- driver.
> Ferrite cements; tip type LED; good cementation to aromatic
polyester
> Relay sealant; Good adhesion to rubber, ceramics,PCB and
plastics
> Power transformers and coils; Potting capacitors;Potting of
small electrical devices
> Adhesion to metal glass and plastic; LCD & substrates
adhesion; Coating and sealant;Coil ; IGBTS; Transformer; Fire
retardant
> Optical / medical component adhesive
TIS680-15AB
Series Datasheet-(E).pdf
| Typical Properties of TIS™ 680-15AB Series |
| Typical Uncured Material |
| TISTM680-15A(Resin) | Mixing ratio (By weight) |
| Color | white | A : B=100 :100 |
| Viscosity @25℃ Brookfield | 4000 mPa.s | Viscosity @25℃ | 4000 mPa.s |
| specific Gravity | 1.5g/cc³ | specific Gravity | 1.5g/cc³ |
| Shelf life @25℃ in sealed container | 12 months | Working pot life(250g @25℃) | 30 mins |
| TISTM680-15B(Hardener) | Cure Schedule |
| Color | White | Cure at 25C | 3 hrs |
| Viscosity @25℃ Brookfield | 4000 cPs |
| Shelf life @25℃ in sealed container | 12 months | Cure at 7o°c | 20 mins |
| Cured Properties |
| Hardness (Shore A)@25℃ | 85 Shore D |
| Operating temperature | -40℃ ~160℃ |
| Glass transition temperature Tg | 92℃ |
| Elongation | 4.50% |
| Coefficient of thermal expansion, /℃ | 3.0x 10^(-5) |
| Fire resistance uL | 94 V-0 |
| Moisture absorption % wt gain 24 hours water immersion @25℃ | < 0.1 |
| Thermal Conductivity | 1.5W/m-K |
| Thermal Impedance @10psi | 0.36℃*in²/W |
| Dielectric Strength | 400 volts / mil |
| Dielectric Constant@1MHz | 4.2MHz |
| Dissipation factor | 0.029MHz |
| volume resistivity, ohm-cm @ 25℃ | 3.0x 10^13 |

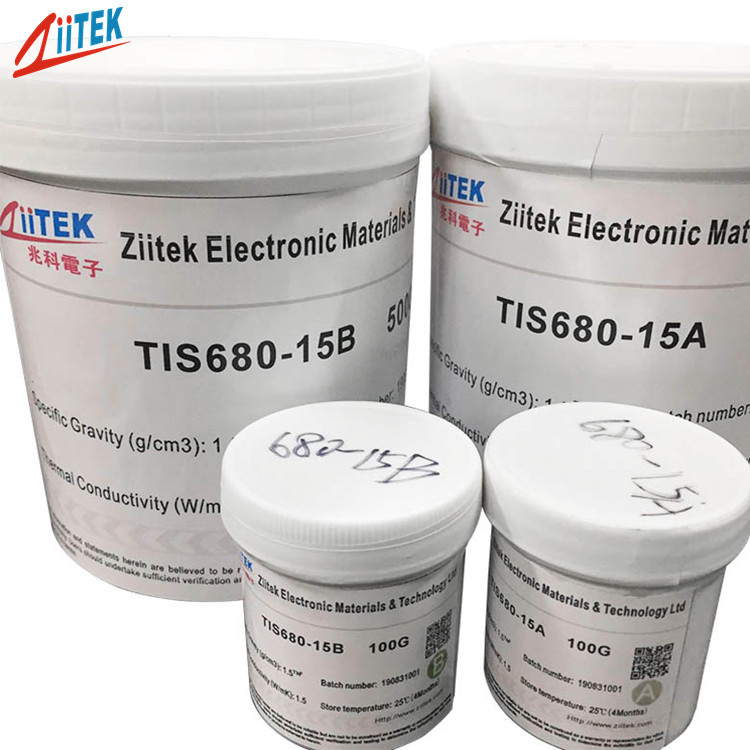

Packing detail:
1KG A/B for each tank.
5KG A/B each.
10KG A/B each.
Company profile
Ziitek company is a high-tech enterprise which dedicated to the
R&D, manufacture and sales of the thermal interface materials
(TIMs). We have rich experiences in this field which can support
you the latest, most effective and one -step thermal management
solutions. We have many advanced production equipments,full test
equipments and fully automatic coating production lines which can
support the production for high performance thermal silicone pad,
thermal graphite sheet/ film, thermal double-sided tape, thermal
insulation pad, thermal ceramic pad, phase change material, thermal
grease etc. UL94 V-0, SGS and ROHS are compliant.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries
in English of course.
Standard Export Carton Or Marked With Customer's Information Or
Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if
you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory
solution.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it
is 7-10 work days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
