Thermal Conductive Glue Electronic Epoxy Resin Adhesive High
Thermal Conductive Potting Epoxy Adhes
TIE™ 280-12AB is a two compound, high thermal conductive, low temperature cured,
long pot life, fire resistant epoxy encapsulant compound. It is
design for potting of capacitors and electrical devices.
TIE280-12AB-Series-Datasheet
(1).pdf
Features
> Good thermal conductive: 1.2W/mK
> Excellent insulation and smoothly sourface.
> Low shrinkage
> Low viscosity, expediting air releaseed.
> Excellent in solvents and water proof.
> Longer life time.
> Excellent thermal shock efficiecy and impact resistance
Application
> Automotive starters potting; General potting Thermal detector
potting
> Ferrite adhesion; TIP type LED; Good adhesion to aromatic
polyester
> Relay sealant; Good adhesion to rubber, ceramics PCB and
plastics

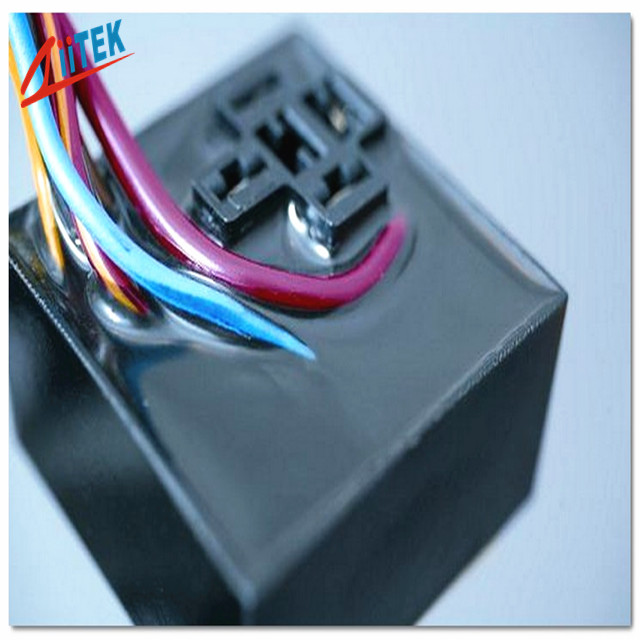

> Power transformers and coils; Potting capacitors Potting of
small electrical devices
> Adhesion to metal glass and plastic LCD & substrates adhesion; Coating and sealant; Coil ; IGBTS; Transformer; Fire retardant
> Optical / medical component adhesive
| Typical Properties of TIE280-12AB Series |
| Typical Uncured Material |
| TIETM280-12A(Resin) | Mixing ratio (weight ratio)
A:=1 :1 |
| Color | Black |
| Viscosity @25℃ Brookfield | 15000 cPs | Viscosity @25℃ Brookfield | 10000 cPs |
| Operating time (@25℃) | 45 mins |
| Shelf life @25℃ in sealed | 12 months | specific Gravity | 1.6 g/cc |
| Mixture Color | Black |
| TIE280-12B(Hardener) | Cure Schedule |
| Color | Black | Cure at 25C | 3 hrs |
| Viscosity @25℃ Brookfield | 7000 cPs |
| Shelf life @25℃ in sealed container | 12 months | Cure at 7o°c | 30 mins |
| Cured Properties |
| Hardness @25℃ | 85 Shore D |
| Operating temperature | -40℃ ~160℃ |
| Glass transition temperature Tg | 92℃ |
| Rate of tension | 0.10% |
| Coefficient of thermal expansion, /℃ | 3.0x 10^(-5) |
| Fire resistance uL | 94 V-0 |
| Moisture absorption % wt gain 24 hours water immersion @25℃ | <0.1% |
| Thermal Conductivity | 1.2 W/m-K |
| Dielectric Breakdown Voltage | 300 volts / mil |
| Dielectric Constant@1MHz | 4.2 |
| volume resistivity, ohm-cm @ 25℃ | 3.0x 10^13 |
Product packaging
1KG A/B for each tank.
5KG A/B each.
10KG A/B each.
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team,
engineering team, R&D team, Manufacturing team, logistics team.
All is for supporting and servicing a satisfy service for
customers.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it
is 7-10 work days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
