High Performace Thermal Conductive Silicone Free Gap Filler Sheet
For LED
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal
conductive materials, owns advanced production equipment and optimized process, can provide
various thermal solutions for different applications.
Z-Paster100-30-10UF Series is a high performance and compatible non-silicone material of the
thermal conductive interface materials.The role is to fill the air
gaps between the heating elements and the heat dissipation fins or
the metal base.
It applies to the liner based on silicone suitably. The flexibility
and elasticity make it suited to the coating of the very uneven
surfaces.Heat can transmit to the metal housing or dissipation
plate from the separate elements or even the entire PCB, which in
effect enhances the efficiency and life-time of the heat-generating
electronic components.

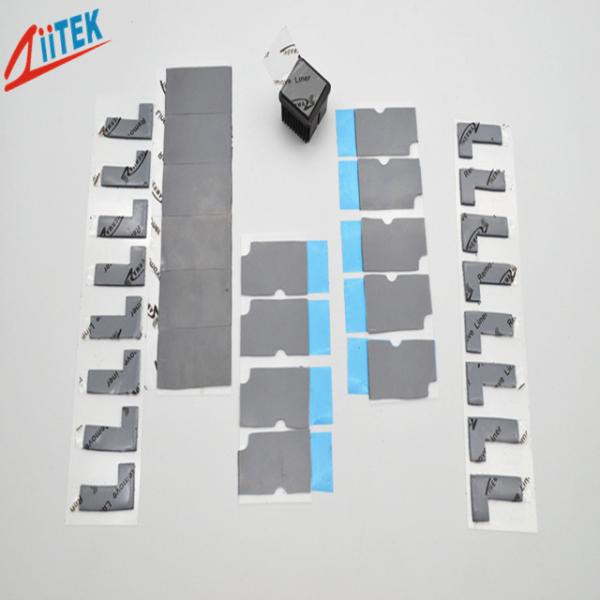

Z-PASTER100-30-10UF-Silicone-free-Thermal-conducti...
Features
>Silicone-free
>ROSH compliance
>Good thermal conductive:3.0 W/mK
>Soft and Compressible for low stress applications
>Available in varies thickness
Application
>Cooling components to the chassis of frame
>Car Battery & Power Supply
>Charging Pile
>Silicone-sensitive applications
>Graphics Card Thermal Module
>Set Top Box
> Medical devices
>LED Lighting
>SFP optical module
>Miniature heat tube radiator
Typical Properties of Z-Paster100-30-10UF Series | |
| Color | Gray | Visual | Dielectric Breakdown Voltage (T= 1mm above) | >5000 VAC | ASTM D149 | |
|
| Construction | Silicone-free The metal oxide fills | ********** | Dielectric Constant | 5.5 MHz | ASTM D150 | |
|
| Thermal Conductivity | 3.0 W/mK | ASTM D5470 | Volume Resistivity | 6.0X1013 Ohm-meter | ASTM D257 | |
|
| Hardness | 65 Shore 00 | ASTM 2240 | Continuous Use Temp | – 20 To 125 ℃ | ********** | |
|
| Specific Gravity | 2.88 g/cc | ASTM D297 | Outgassing (TML) | 0.30% | ASTM E595 | |
|
| Thickness | 0.020"-0.200" (0.5mm~5.0mm) | ASTM D374 | Flame Rating | 94 V-0 | equivalent to |
Standard size
0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Options
Proprietary NS1 option available to eliminate tack from one side to
aid in handling.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team,
engineering team, R&D team, Manufacturing team, logistics team.
All is for supporting and servicing a satisfy service for
customers.
Q&A
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it
is 7-10 work days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge
