Thermal Putty 1.5W Silicone Thermal Gel Low Thermal Resistance For
Mother Board
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and
manufacturing superior thermal interface materials for competitive
market. Our vast experience allows us to assist our customers best
in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make
your design more perfect!
TIF015-07-Specification-sheet.-pdf.pdf
TIF015AB-O7S Series is a highly thermal conductive, liquid gap filling material.lt is
provide with two-component and different temperature curing system.
The product was supplied as highly thermal conductive, soft and
elastomer for coupling on electrical devices modul.Heat can
transmit to the metal housing or dissipation plate from the
separate elements or even the entire PCB, which in effect enhances the
efficiency and life-time of the heat-generating electronic
components. lt is liquid approach offer variety of thickness,
replacing individual di-cut and specific pad thickness. Different
from grease, the cured product is dry and can be touch.lt can
intented for use in thermal applications.
Features
< Good thermal conductivity: 1.5 W/mK
< Two-part formulation for easy storage
< Excellent low and high temperaturemechanical and chemical
stability
< Ultra-conforming low-stress interface application
< Ambient or accelerated cure schedules
< Optimized shear thinning characteristics for ease of
dispensing
Applications
< Computer and peripherals
< Telecommunications
< Automotive electronics
< Thermally conductive vibration dampening
< Heat sink and any heat generating semicondutor
| Typical Properties of TIF015AB-07S Series |
| Typical Uncured Material |
| Property | Numerical | Test Method |
| Color/Part A | White | Visual |
| Color/Part B | Green | Visual |
| Viscosity as Mixed(cps) | 400,000 cps | GB/T 10247 |
| Density | 2.3g/cc | ASTM D792 |
| Mix Ratio | 1:1 | ****** |
| Shelf Life@25℃ | 6 months | ****** |
| Cure Schedule |
| Pot Life @25℃ | 30 min | ****** |
| Cure @25℃ | 60min | ****** |
| Cure @100℃ | 30 min | ****** |
| Cure Schedule |
| Color | Green | Visual |
| Hardness | 45 Shore 00 | ASTM D2240 |
| Continuous Use Temp | ﹣45~200℃ | ****** |
| Voltage Strength | 200V/mil | ASTM D149 |
| Dielectric Constant | 4.2 MHz | ASTM D150 |
| Volume Resistivity | 10
12Ohm-meter | ASTM D257 |
| Flame Rating | 94V0 | E331100 |
| Thermal Conductivity | 1.5W/Mk | ISO 22007-2 |
| Specific Heat Capacity | 2.2MJ/m3K | ISO 22007-2 |
Product packing details:
50cc/pc , 400pcs/box, 9pc/box

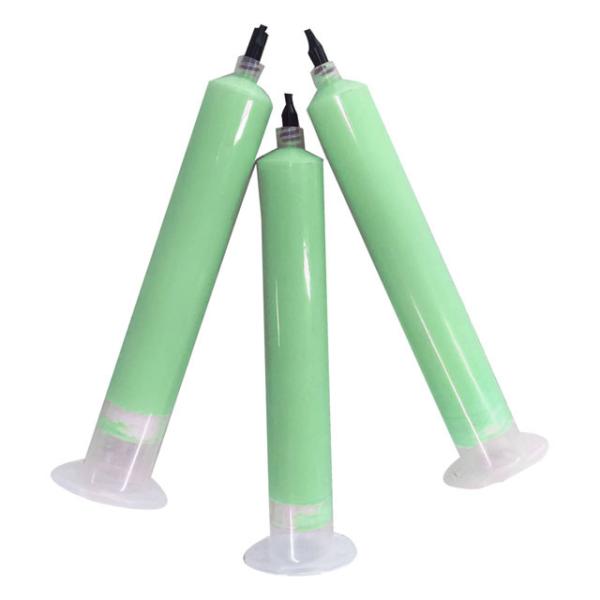

We offer the custom packaged in Syringes for automated despensing
applications.
Please contact us for confirming.
