Double Side Glass Fabric Thermally Conductive Tape For LED
Lighting
The TIA™800 Series products are mostly used for bonding heat dissipation fins,
microprocessors and other power consumption semiconductors. This
type of adhesive tape possesses ultimate bonding strength with low
thermal impedance, with which in effect can be able to replace the
method of lubricating grease and mechanical fixing.
TIA800-Series-Datasheet-REV01.pdf
Features
> Thermal Conductivity: 0.8W/mK
> High performance,thermally conductive acrylic adhesive.
> Hihg bond strength to a variety of surfaces double sided
pressure sensitive adhesive tape
Applications

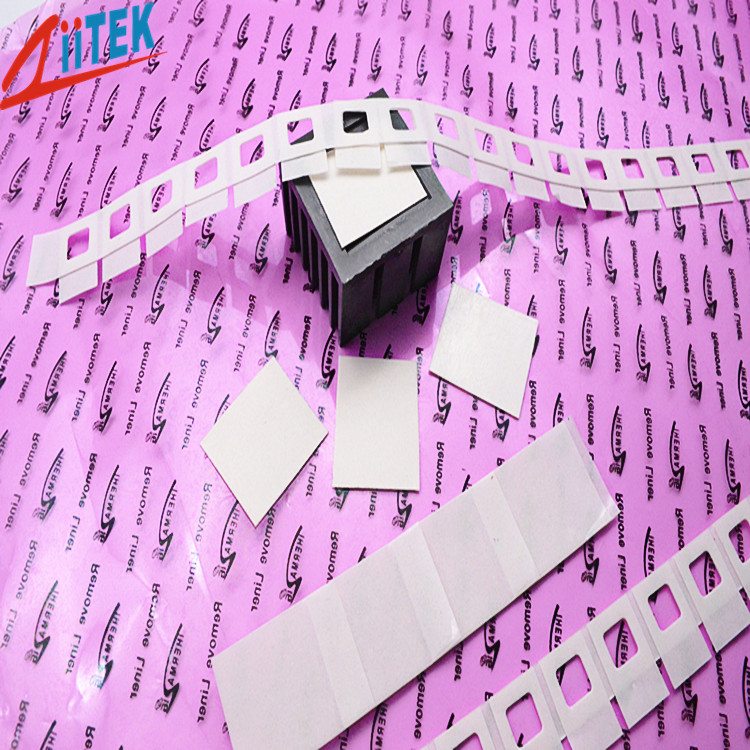

> Mount heat sink onto BGA graphic processor or drive processor
> Mount heat spreader onto power converter PCB or onto motor
control PCB
> High performance, thermally conductive acrylic adhesive
> Can be used instead of heat cure adhesive,screw mounting or
clip mounting
| Typical Properties of TIA™800 Series |
| Product Name | TIATM802 | TIATM804 | TIATM806 | TIATM808 | TIATM810 | TIATM812 | TIATM815 | Test Method |
| Color | White | Visual |
| Adhesive Type | Acrylic Adhesive | ******** |
| Backing Type | N/A | ******** |
| Continuous Use Temp | -45℃ to 120℃ | ******** |
| Composite Thickness | 0.0019" 0.05mm | 0.004" 0.101mm | 0.006" 0.152mm | 0.008" 0.203mm | 0.010" 0.254mm | 0.012" 0.304mm | 0.015" 0.381mm | ASTM D374 |
| Voltage Breakdown | > 600Vac | > 1200Vac | > 1800 Vac | >2500 Vac | > 2700 Vac | > 3000 Vac | > 4000 Vac | ASTM D149 |
| 180 Peel Adhesion | >1200 g/inch (Steel, Immediate) | PSTC-1 |
| 180 Peel Adhesion | >1400 g/inch (Steel after 24hrs) | PSTC-1 |
| Holding Power 25℃/Hours | > 48 Hours | PSTC-7 |
| Holding Power 80℃/Hours | > 48 Hours | PSTC-7 |
| Thermal Conductivity | 0.8W/mK | ASTM D5470 |
Standard Thicknesses:
0.0019"(0.05mm), 0.004"(0.101mm) , 0.006" 0.152mm, 0.008" 0.203mm,
0.010" 0.254mm,
0.012" 0.304mm, 0.015" 0.381mm
Consult the factory alternate thickness.
Standard Sizes:
16" x 100"(406mm x 30.48mm)

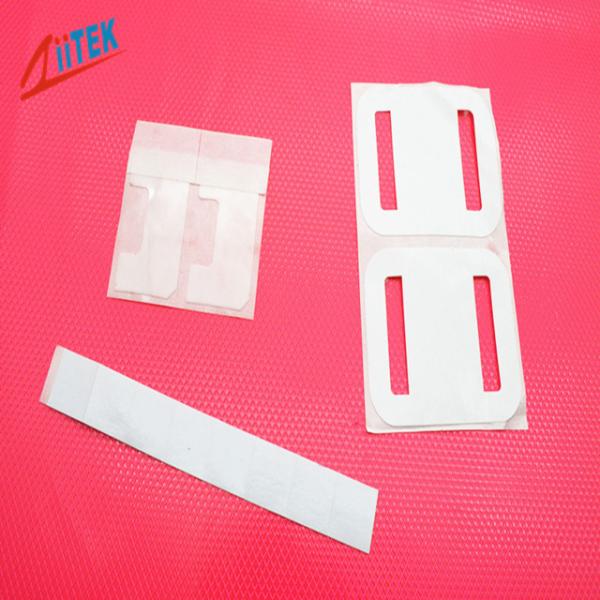

Individual die cut shapes can be supplied.
Reinforcement:
TIA800 series rolls type can add with fiberglass reinforced.
